Dynacord -SPL-Extreme-LIVE Application

0 opinii | Spune-ţi opinia

Producător: Dynacord
Cod produs: Dynacord -SPL-Extreme-LIVE Application
Disponibilitate: indisponibil momentan

88.650,00 RON TVA inclus

Pret: 17.375,40€
VAT Incl.

Descriere
Opinii (0)

Descriere

Noutati de la prestigioasa firma Dynacord din Germania. SETUL StageProLighting(SPL) - Extreme- LIVE Application este configurat exact cu aceste noutati dupa un studiu atent, indicatiile din specificatiile tehnice si recomandarile producatorului. Astfel setul recomandat pentru aplicatii LIVE se comporta excelent atat acolo unde este necesara forta multa si claritate a tuturor instrumentelor si in special a vocilor (exact acolo unde salile pot avea o acustica nu tocmai ok), cat si in spatii deschise unde este imperios necesara penetranta sunetului concomitent cu difuzia acestuia. Tehnologia de ultima ora folosita de inginerii de la Dynacord si flexibilitatea unui astfel de sistem se apropie atat de capacitatile unui sistem Cobra 4 (sensibil mai scump), cat si de tehnologia pur line-array, de asemenea mai scumpa. Sistemul raspunde perfect in toata banda de frecvente, fiind totodata extrem de agresiv. Mediile si inaltele se aud bine atat de aproape, cat si la distante de pana la 80m fara probleme, iar basii sunt peste tot. Ideal pentru trupele care canta genuri agresive, sau care au nevoie de forta multa. Ca putere, acest set depaseste si XA 2 si XA 3, in plus prezentand avantajul de a suna foarte bine "cu drive" si la volume reduse, dinamica sistemului jucand un rol esential in acest sens. Cele doua subwoofere active PSD 218 vor ataca de asemenea celelalte doua subwoofere pasive PSE 218, cat si speakerele top TS 400 de banda larga, astfel incat intregul sistem va lucra in 4 Ohm. TS 400 sunt perfect optimizate pentru PSD 218, preseturile din DSP-ul amplificatoarelor incorporate fiind gata presetate de fabrica. Adaugarea in sistem a celorlate doua top-uri de mare randament: COBRA-4-Far active de asemenea, in lucru penru banda de frecvente 90Hz-17kHz nu numai ca va spori dramatic dinamica sistemului gratie si celor 131 dB pe care ii detin fiecare in maxim, dar vor asigura si dispersia necesara H/V 90/30 grd, astfel incat sistemul se va auzi bine de oriunde si oricum ar fi plasat (cu top-urile suspendate de grinda de ex). Usoara orientare spre exterior a celor doua T400 pot chiar mari dispersia pe orizontala, adaptand sistemul conditiilor existente, sau pot de asemenea fi folosite pentru monitorizarea scenei (de ex din lateral) functie de preferinte, fara a mai fi nevoie de alte monitoare suplimentare.

Sistemul se aduce numai cu pre-comanda, pentru pret, detalii privind livrarea, sunati va rog la magazin. Import Germania, 3 ani Garantie!!!

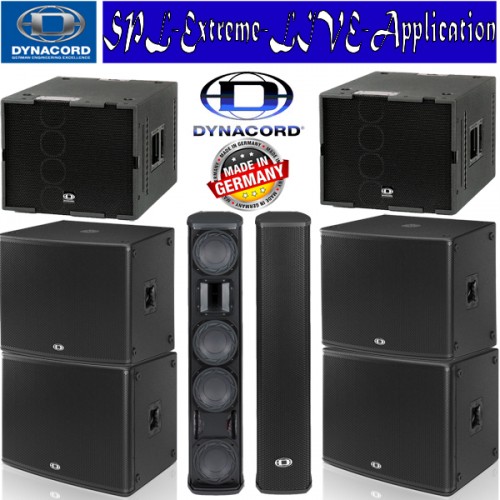

Sistemul dvs va contine:

Component	Nr Buc	Specificatii de baza
Dynacord TS 400	2	full-range vertical array cabinet 600/2400W
COBRA-4-FAR	2	active 3-Way cabinet 800 W RMS
Dynacord PSD 218	2	active subwoofer 18", DSP, 1000 +1000 W RMS
Dynacord PSE 218	2	versiunea neamplificata sa sub PSD 218, 18"
Set Accesorii	1	Cabluri dedicate sistemului

Detalii Tehnice produse:

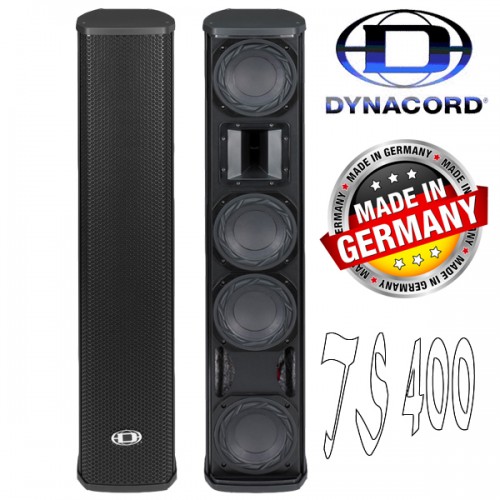

TS 400 – full-range vertical array cabinet
The TS 400 is a compact, powerful, and versatile loudspeaker system for mobile applications and fixed installations. It can be used either full-range or in active two-way systems for applications requiring subwoofers, where DYNACORD's PSD 215 and PSD 218 powered subwoofers make ideal companions. Vertical pattern control is essential if optimal sound quality and intelligibility are to be achieved in difficult acoustic environments. The TS 400 was designed to provide very even and smooth coverage over a very wide bandwidth by using spaced and filtered woofers as array elements.

The TS 400’s 2.5-way design places elements at both ends of the speaker column to maximize the distance between them, thereby ensuring that greater control over the low frequency range is retained. The MF- and HF-elements are placed in the middle of the column for a smooth transition between the different frequency areas and to achieve further control over the radiation pattern. Each group of elements has its own band-pass filter, to optimize the array’s performance and attenuation 90° off-axis whilst at the same time providing even coverage of the audience area front-to-rear, where the rate of attenuation is half that of an "unsteered” cluster.

The TS 400 is equipped with 4 x 6,5” DND 6130-16 Neodymium woofers and one Electro-Voice DH3 compression driver coupled with a 90° by 40° constant directivity horn providing very high SPL and excellent coverage. Power handling is 600W RMS / 2.400W peak.
Separate protection circuits for the LF-, MF- and HF-elements are used to protect all transducers at the highest power levels. The TS 400 enclosure is aluminum for a very robust but lightweight design with a look that fits any environment.

Cabinet

Full Range

Configuration

Passive 2.5-Way

Components

4 x 6“ / 1“

Impedance

4 Ohms

Rated Power RMS

600 W

Peak Power

2400 W

SPL 1 W / 1 m

97 dB

Max. SPL 1 m / calc.

131 dB

Freq. Range (-10 dB)

74 Hz - 20 kHz

Coverage (H x V)

90° x 40°

Dimensions (W x H x D) mm

199 x 935 x 281

Net. Weight

17 kg

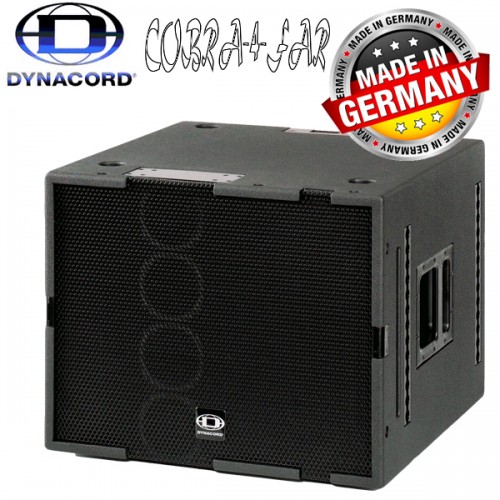

DYNACORD´s COBRA-4-FAR is an active 3-Way cabinet for use as a farfield cabinet in compact line arrays and other demanding applications, where wide horizontal coverage, extremely low distortion and a low sensitivity against acoustic feedback are mandatory.

Depending on the application, the COBRA-4-FAR cabinet can be used up to 80m throw distance. For the high frequencies of the COBRA-4-FAR, three Electro- Voice DH2T titanium diaphragm drivers are connected to a low-resonance waveguide that creates a coherent isophasic wavefront with a precisely defined vertical dispersion angle of 5° at 10kHz. Stacking of COBRA-4-FAR cabinets automatically increases the height of the isophasic wavefront due to the mechanical design of the low-resonance waveguide. The mid-range of the COBRA-4-FAR uses selected DYNACORD C8 cone transducers in a line array configuration. The C8 transducers show significantly lower distortion than typical horn/compression driver combinations.

Therefore an extremely natural sound quality over large distances can be achieved. The DYNACORD COBRA-4-FAR uses a vented direct-radiator design equipped with an Electro-Voice EVX155 for the low frequencies. The cabinet is equipped with an electronic circuit called VOICE COIL TRACKING PROTECTION. This circuit senses the terminal voltage of the transducers and simulates the thermal behaviour of the transducer voice coils. In case of potential thermal overload the power applied to the speakers is reduced to a safe level. Power amps up to 1200W/8Ohms can be used in order to have maximum dynamic range without the danger of thermal overload in non-controlled situations. The VOICE COIL TRACKING PROTECTION exhibits “soft” switching characteristics, so no annoying clicks or pops are audible. The circuitry automatically resets after the voice coil temperatures have reached a safe value.

Order No.

112 897

Cabinet

MID - HIGH Cabinet

Configuration

Compact line array / active 3-way

Nominal impedance: LOW - MID - HIGH

8 Ohms - 8 Ohms - 8 Ohms

Rated power RMS: LOW - MID - HIGH

400 W - 200 W - 200 W

Program power: LOW - MID - HIGH

800 W - 400 W - 400 W

SPL 2,83 V / 1m 1 W / 8 Ohm

100 dB

Max. SPL 1m (calculated)

131 dB

Frequency response ( -10dB )

90Hz - 17kHz

measured with DSP 244 preset

COB4TOPFAR200203

Coverage angle 1 kHz (-6dB)

H 120° x V 30°

Coverage angle 10kHz (-6dB)

H 90° x V 5°

Active crossover frequency

124Hz - 700Hz - 4kHz

Voice coil tracking protection

LOW - MID - HIGH

Components HIGH

DH 2T Line array

Order No.

3x 355 391

Components MID

C8 Line array

Order No.

4x 361 376

Components LOW

EVX155

Order No.

359 561

Connector wiring HIGH

8-pole 4+/4-

Connector wiring MID

8-pole 3+/3-

Connector wiring LOW

8-pole 2+/2-

Connector model

Speakon 2x NL8 MPR

Dimensions (WxHxD) mm

600 x 495 x 717

Shipping weight

67 kg

Net weight

63.5 kg

Enclosure material

Birch plywood 18mm

Finish

Black polyurethane

Grille

Powder coated steel

Handles

Ancra Tracks

Webbing strap point

Front cover

Castors

Warranty

36 Months

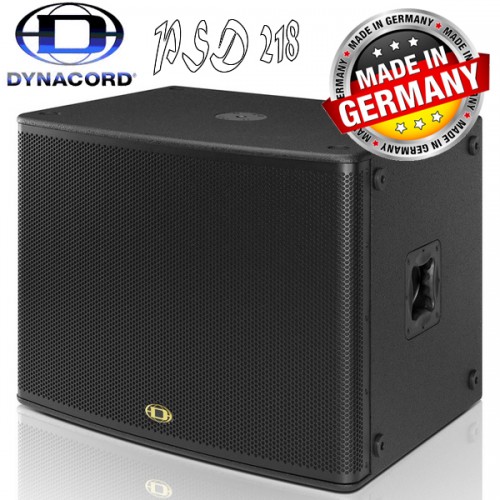

The PSD 218 with an 18" Electro-Voice DVX3180 long-excursion woofer delivers the performance demanded of 18" subwoofers in professional concert sound applications. It produces extended low frequency response from a compact enclosure with plenty of punch.

This model use a highly efficient Class D technology amplifier a microprocessor-controlled switched-mode power supply to deliver 2 x 1,000 watts RMS into 4 ohms for highest quality audio performance All DYNACORD power amplifiers are capable of withstanding the most extreme rigors of touring, they are protected against overheating, overload, short circuit, back EMF and open-circuit operation as well as HF or DC at the output. Thermal stability is assured by an extremely quiet continuously variable speed fan. The units are also equipped with intelligent thermal limiters that track voice coil operating temperature that allow maximum output without failure. being any noticeable reduction in loudness. PROTECT and LIMIT LEDs indicate the current operating status of the power amplifiers.

The integrated 24-bit digital controller with internal 48-bit double-precision resolution exhibits a 1-into-3 topology: SUB channel, TOP channel and an additional DSP Out.

The stored factory presets are optimized for combinations with TS 400, Corus 12" and 15", CXM 15, D-Lite 12.3 and 15.3, as well as VariLine full-range cabinets and generic presets for other combinations and special programs for cardioid and bass arrays are also provided. The system-/alignment-delay, the polarity and naturally also the level can be edited by the user. The input EQ, the settings of which can be saved, allows adjustments to be made for the acoustics of the room. The DSP Out also offers an adjustable delay, low-cut and shelving equalizer as well as a level control. It is therefore ideally adapted, among other things, to the use of an active delay box. Signal generators with pink noise or spike pulses are integrated to facilitate tuning the PA and the setting of delay times. In all, 25 program locations are provided (20 factory presets + 5 user memories). All three channels are equipped with state-of-the-art look-ahead peak anticipation limiters, the SUB channel also has a temp limiter.

PSD 218

Cabinet

Subwoofer

Configuration

Powered 2-Channel

Components

1 x 18“

Rated Power RMS

1000 W TOP, 1000 W SUB

Max. Amplifi er Output Capability

3200 W

Max. SPL 1 m / calc.

130 dB

Freq. Range

34 Hz - X-Over

Dimensions (W x H x D) mm

759 x 575 x 694

Net. Weight (without wheels)

45.2 kg

Wheels

2.4 kg

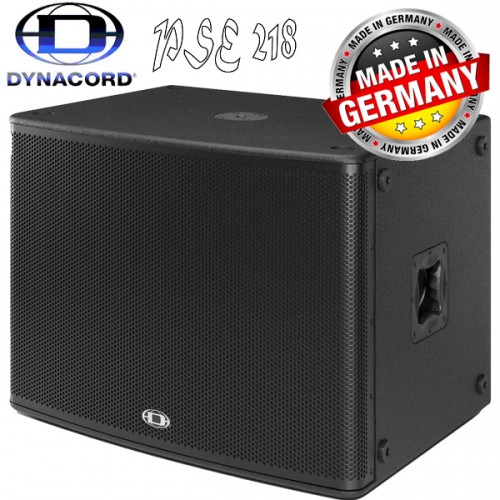

PSE 218 is the non powered versions of the PSD subs, share the same dimensions, transducer configurations, and the acoustic characteristics allowing them to be used with PSD 215 and PSD 218 without additional amplifiers when greater SPL is required.
The PSE 215 and 218 may also be used as a subwoofer in any other active system combination.

PSE 218

Cabinet

Subwoofer

Configuration

Vented-Direct Radiator

Components

1 x 18“

Impedance

8 Ohms

Rated Power RMS

500 W

Peak Power
