Descriere

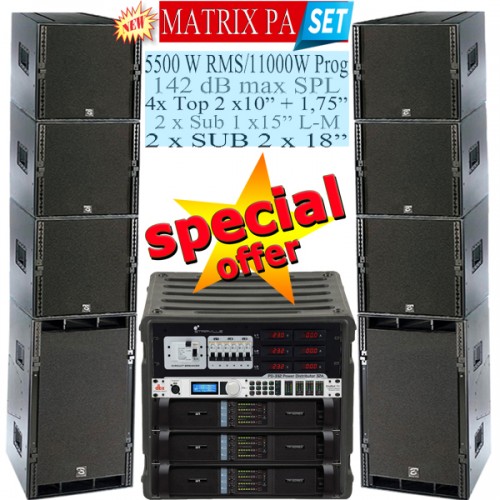

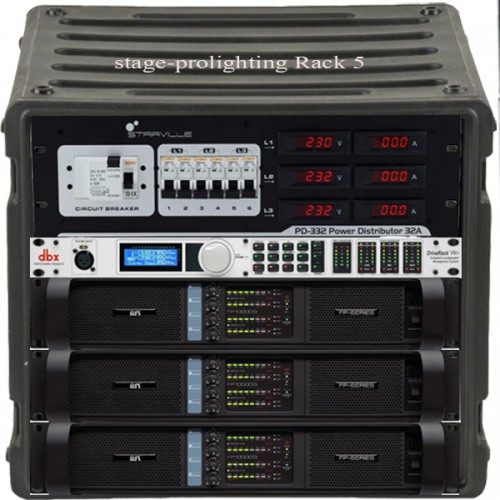

Setul "Matrix PA SET" este un sistem PA complet, foarte bine echilibrat, compus din 2 sub-uri duble de 18", doua Low-Medium-sub de 15", 4 top-uri 2x 10" neodym + 1,75" neodym driver si rack-ul de puteri Rack 5 compus din Hard case + Paches cables, 2 x FP 10000Q (clone), 1 x FP 8000Q (clona), 1 x dbx DriveRack PA+, Stairville 332 Power distributor. Exista o rezerva de putere in acest sistem (pentru upgrade-uri ulterioare), de aceea procesorul de sistem dbx trebuie setat de personal calificat pentru a obtine maximum de randament de la acest sistem si totodata pentru protectia tuturor speakerelor. Astfel, distributia din cele 3 puteri se face dupa modelul tipic "matrix": L/M/H: prima putere va deservi cele 4 topuri (independent) din iesirea Hi a dbx (crossoverata 300- 19000), cea de a doua va deservi suburile de 15" cu limitare si compresie mare (din iesirea MID a dbx crossoverata 250-600Hz), iar cea de a treia (in bridge) va deservi suburile 2 x 18" din iesirea Low a dbx (crossoverata 35- 250). Import China speakere si puteri (garantie 1 an!), completat cu import Germania ptr dbx, Hard case + Patch cables si Stairville power distributor (garantie 3 ani!!!). Produsele se aduc numai cu pre-comanda, iar termenul de livrare este de 30 de zile.
Detalii Tehnice:
ALPHA S2 ( Beilarly Audio by Foshan Nanhai Yunqin Professional Audio Equipment Factory) is a structure of high-grade birch plywood speakers, a unique 18-inch folded horn desing of maze makes the potency dimension of bassbaritone more deep and strong, providing a very smooth feel of the impact and shock effect in the low and medium frequency, longer range, with the use of ALPHA series M3 medium-high frequency and S2 ultra-low frequency. It is more suitable for large-scale performance, gymnasium theater and other large venue of reinforcement.
ALPHA M3 ( Beilarly Audio by Foshan Nanhai Yunqin Professional Audio Equipment Factory) is a structure of high-grade birch plywood speakers, large-scale structure of coaxial horn of alt, double 10-inch mediant and 3-inch prure titanium membrane treble voice combination makes more clear and transparent, the range further, with the use of low and ultra-low of ALPHA series make the potency dimension stronger and the range further. It is more suitable for large-scale perforance, gymnasium and other large venue sound reinforcement.
ALPHA B15 ( Beilarly Audio by Foshan Nanhai Yunqin Professional Audio Equipment Factory) is a structure of high-grade birch plywood speakers, a unique 15-inch folded horn design of maze makes the potency dimension of bass baritone more strong, providing a very smooth feel of the impact and shock effect in the low and medium frequency ,longer range ,with the use of ALPHA series M3 medium-high frequency and S2 ultra-low frequency. It is more suitable for large-scale performance, gymnasium and other large venue of reinforcement.
QSN Audio FP10000Q (clone - made in China) is a popular amplifier in the world.
|
FP+ series Switching Power Amplifier Specification |
|||||
|
ITEM |
FP7000 |
FP9000 |
FP14000 |
FP8000Q |
FP10000Q |
|
Output Power |
20-20kHz, 1W with 1 kHz |
||||
|
8ΩStereo Power(RMS) |
1500WX2 |
1800WX2 |
2350WX2 |
800WX4 |
1350WX4 |
|
4ΩStereo Power(RMS) |
2800WX2 |
3000WX2 |
4400WX2 |
1400WX4 |
2100WX4 |
|
2ΩStereo Power(RMS) |
3500WX2 |
4500WX2 |
7000WX2 |
1600WX4 |
2500WX4 |
|
8ΩBridged Power(RMS) |
5600W |
6000W |
8800W |
2800WX2 |
4200WX2 |
|
4ΩBridged Power(RMS) |
7000W |
9000W |
14000W |
3200WX2 |
5000WX2 |
|
Frequency Response(+o/-0.3dB,1W/8Ω) |
20 Hz - 34 kHz |
||||
|
THD 20 Hz - 20 kHz for 1 W |
<0.1% |
||||
|
Signal-to-Noise Ratio |
>112 dB |
||||
|
Channel separation (Crosstalk) at 1 kHz |
>70 dB |
||||
|
Input Connectors (per channel) |
3-pin XLR, electronically balanced |
||||
|
Output Connectors (per channel) |
Binding Posts 2-pole |
||||
|
Class |
TD |
||||
|
Tour Class Protection |
ACL,IGM, Auto Ramp, short circuit, DC voltage, turn-on/off transient, current inrush, sub/ultrasonic input |
||||
|
Operating voltage, 230 V / 115 V nominal |
130-265 V / 65-135 V |
||||
|
Voltage Gain(dB) |
23, 26, 29, 32, 35, 38, 41, 44 dB selectable |
||||
|
Input impedance |
20 k Ohm |
||||
|
Level adjustment (per ch.) |
Front-panel potentiometer, 31 position detected from –inf. to 0 dB |
||||
|
Dimensions (W×H×D) |
483×88×396mm |
||||
|
Packing dimension |
560×180×500mm |
||||
|
Net weight(kg) |
12 |
||||
|
Gross weight(kg) |
15 |
||||
DBX DriveRack PA+, procesor de sistem
Stairville PD 332, distribuitor de la 380V la 220V
Hard case + Patch (XLR-XLR o,5m) SET included.
