Descriere

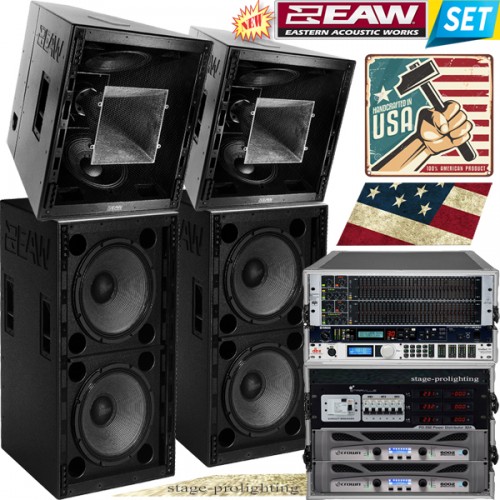

EAW PA Sys SET bundle Rack IV stage-prolighting este un system format din 4 boxe passive, amplificate de rack-ul IV si se compune din doua subwoofere EAW SB750z si doua topuri EAW KF755F VA4, la care se adauga superba procesare si amplificare realizata de Rack IV. Puterea intregului sistem este de 6000 W RMS / 12000 W in program si un SPL maxim de 140 dB care se obtine cu maxima acuratete daca este folosit si procesorul dbx DriveRack PA+ care va separa frecventele astfel incat sistemul va avea randament maxim. In plus, procesorul multi-efect Yamaha SPX 2000, categoric unul din cele mai bune ale momentului, va da stralucirea necesara prin superbele efecte pe care le detine, iar distribuitorul Stairville va feri intreg sistemul de orice caderi, acesta avand un consum respectabil. Import SUA, garantie 3 ani!!! Sistemul se aduce numai cu pre-comanda.
EAW SB750z Subwoofer
EAW®, a world leader in audio system solutions, today launched the SB750z Large-Format Dual-18-Inch-Loaded Subwoofer. The SB750z is perfectly suited for a wide range of non-flying applications (with rigging hardware available as an optional separate product if desired), including concert touring, arenas, houses of worship, auditoriums/theaters, stage/drum fill monitoring, large dance clubs or any other application requiring articulate, powerful low end.
Jeffrey Cox, Vice President, Pro Audio Group, stated, “The SB750z is a particularly strong, cost-effective solution for those who are not necessarily looking to fly their subwoofers. Rigging hardware is not included, which allows us to offer an outstanding price point unmatched by any other manufacturer. However, if rigging is desired, rigging assemblies are available as a separate product. The 750z adds the contemporary capability of high power and performance in the widely used and recognized EAW subwoofer format.”
SB750z Features:
- Direct radiating dual 18-inch design
- Optimally tuned with large, very low-turbulence port
- Unique woofer loading generates unbelievable impact
- Premium large coil 4.5-inch (115 mm) components with tremendous motor strength (+20%BI)
- Powerful neodymium magnet structures reduce system weight and increase output
EAW KF755F
Performance
-Axial Sensitivity (dB SPL, 1 Watt @ 1m)
LF 99
MF 108
HF 115
-Impedance (Ohms)
LF 8
MF 8
HF 8
-Power Handling, (Watts Continuous)
LF 600
MF 400
HF 200
-Recommended High-Pass Filter
24 dB/Octave 30 Hz
-Calculated Maximum Output (dB SPL @ 1m)
LF Peak/Long Term 132/126
MF Peak/Long Term 140/134
HF Peak/Long Term 144/138
-Nominal Coverage Angles, -6 dB points (degrees)
Horizontal 35
Vertical 35 (0 to -35)

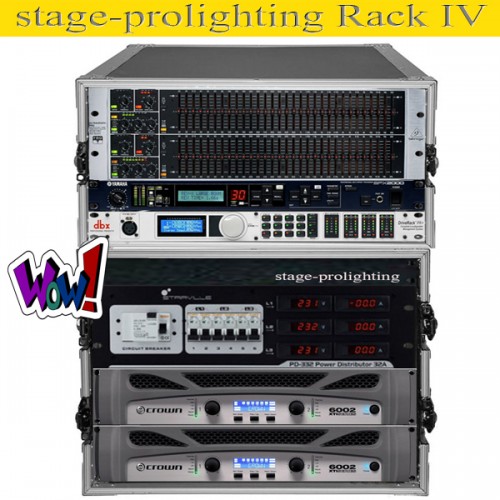

PA Rack IV SET este un "PA ca la carte" dupa modelul clasic, extrem de flexibil, cu o ptere instalata de 6 kW. Ideal pentru aplicatii LIVE, poate fi adaptat unei largi configuratii de speakere (inclusiv line-array). Configuratia de baza ramane insa cea bazata pe subwoofere si top-uri, fiind extrem de eficient datorita procesarilor auxiliare din care mentionam urmatoarele functii de baza:
- Fx processing, multiefect processing: Yamaha SPX 2000
- GEQ, elimina totodata frecventele nedorite (anti-feed-back prin metoda clasica de taiere) identificate cu Pink Noise Generator si self audio-anayzer, limitator, booster/atenuator: Behringer FBQ6200HD
- Compresor, Limitator, Crossover, Delay, procesor de sistem (matrix system controller): dbx DriveRack PA+
- Power amplifiers, (aux DSP): 2 x Crown XTI6002
Import Germania, 3 ani garantie individuala la toate produsele!!
Detalii tehnice:
Behringer FBQ6200HD, 2x 31 band equalizer with feedback Detection, works as feedback detector, or as an audio analyzer, limiter, Pink Noise Generator, 2x XLR or 6.3mm jack input, 2 x XLR or 6.3mm jack output, 1x XLR Mono Sub starting with x- Over frequency controller, 4U, dimensions (HxWxD) 133 x 483 x 138 mm, weight 2.3 kg
Crown XTI6002 Power Amplifier 1200W @ 8 Ohms
- 2 Ohms Stereo (per ch.) 3000W
- 4 Ohms Stereo (per ch.) 2100W
- 8 Ohms Stereo (per ch.) 1200W
- 8 Ohms Bridge-Mono 4200W
- 4 Ohms Bridge-Mono 6000W
There's no debate – when you choose Crown's XTi 2 Series, you're choosing one of the most powerful and innovative amplifiers on the market today. That's because the all-new XTi 2 Series amps continue to set the standard for unmatched performance and value, delivering the goods night after night without breaking a sweat.
Next Generation Features:
- Peakx Plus Limiters provide the ultimate in system performance and protection by allowing full control over threshold, attack, and release
- Enhanced Subharmonic Synth section provides user control over frequency, gain and filter type for system-specific tuning
- 3 User-defined fan mode controls – normal, early and fullspeed – for matching fan performance to a specific application
- New system monitoring provides software visibility of AC line voltage and power supply temperature
- Integrated cast-aluminum handles for easy handling and enhanced durability
- Locking power cord clip provides a secure connection between the amplifier and power cord
- Updated HiQnet Band Manager and System Architect control software
- Increased number of presets to a total of 30; 29 of which are user definable
PERFORMANCE
Input EQ:
6 parametric filters per channel with adjustable Q, ±15 dB boost/cut. Also adjustable high and low shelving filters. This 8-filter EQ section can be bypassed.
Crossover Filters:
Highpass and Lowpass per channel. Butterworth 6/12/18/24 dB per octave. Linkwitz-Riley 24/48 dB per Octave. Also includes ± 15 dB bandpass gain and polarity control.
Output EQ:
8 parametric filters per channel with adjustable Q, ±15 dB boost/cut. This 8-filter EQ section can be bypassed.
Delay:
For signal alignment of driver; 50 mS of total delay.
SubHarmonic Synth:
Takes the low-frequency content of the input signal and "synthesizes" a new signal that is the same as the input signal but one octave lower. The new synthesized signal is then mixed with the original signal to create the effect. New: Users now have control over frequency, gain, and filter type.
Peakx Plus Limiter:
User defeatable limiter that allows users to control Threshold, Attack, and Release times.
Presets:
30 total presets, 29 of which are user-definable.
Sensitivity (for full rated power at 4 ohms):
1.4 Vrms
Frequency Response (at 1 watt, 20 Hz - 20 kHz):
+0 dB, –1 dB
Signal-to-Noise Ratio (below rated 1kHz power at 8 ohms):
100 dB (A weighted)
Total Harmonic Distortion (THD):
Damping Factor 20 Hz to 1 kHz
Crosstalk (below rated power)
20 kHz - 1 kHz: > 70 db
Input Impedance (nominal)
20k ohms balanced, 10k ohms unbalanced
Maximum Input Signal:
+22 dBu typical
AC Line Voltage and Frequency Configurations
100 VAC, 120 VAC, 220-240 VAC 50/60 Hz
AC Line Current:
8.3A; no more than 38W at idle
Operating Temperature:
0°C to 40°C at 95% relative humidity (non-condensing)
Level:
Two front-panel rotary level controls, one for each channel
Power Switch
On/Off switch applies AC power to the amplifier
Sel/Prev/Next Buttons
Three buttons near the LCD screen that are used to access menu items and front panel lockout
LCD Screen
Backlit liquid crystal display that shows preset and processing status
Indicators
Signal Indicator:
Green LED, one per channel, illuminates when a very low-level signal is present at input (may be used for troubleshooting cable runs).
–10 Indicator:
Green LED flashes when output signal exceeds -10 dB below clip.
–20 Indicator:
Green LED flashes when output signal level exceeds -20 dB below clip.
Ready Indicator:
Green LED, one per channel, illuminates when the amplifier is ready to produce audio.
Clip Indicator:
Red LED, one per channel, turns on at the threshold of audible distortion
Temp Indicator:
Red LED, one per channel, illuminates under excessive temperature conditions
Power Indicator:
Blue LED illuminates when the amplifier has been turned on and has power
Input/Output Connectors
Input Connectors:
XLR, one per channel
Link/Out Connector
Loop-thru signal from input connector for linking another amplifier, one per channel.
Output Connectors:
Two Neutrik Speakon NL4MP output connectors. Channel-1 Speakon is wired with Ch. 1 and Ch. 2 outputs for use with optional single 4-conductor cable. Two binding post outputs (in parallel with Speakon connectors).
HiQnet USB Connector
Type B, connects to HiQnet network.
Construction
Chassis:
Steel
Front Panel:
Cast-aluminum
Cooling:
Proportional speed fan with front-to-rear airflow.
Dimensions:
19" (W) x 3.5" (H) x 12.25" (D)
Net Weight:
18.5 lbs (8.4kg)
Shipping Weight:
21.5 lbs (9.8kg)
Yamaha SPX 2000, multieffect processor.
Stairville- PD32, power distributor
Hard case + Cables PATCH SET
