Descriere
Pretul exprimat este pentru intreg set-ul de 6 bucati si doua case-uri. Produsele se importa numai cu pre-comanda, plata integral anticipat. Disponibilitate doar doua set-uri. Import Germania. Produse second-hand, conditie tehnica foarte buna, estetic oferim doar 4 stele din 5 si au o garantie de 3 zile pentru verificari. Orice neconformitate descoperita va fi remediata prin inlocuire.
Inainte de a plasa comanda, va rugam sunati la magazin pentru a re-verifica disponibilitatea. Produse originale NEXO.

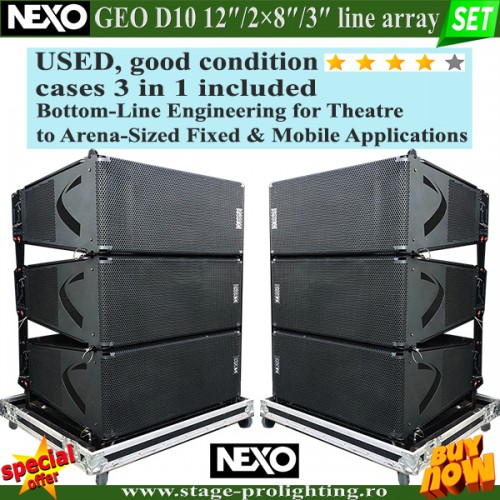

GEO D10 PRODUCT FEATURES Components HF: 1x 3” voice coil, 1.4” throat 16Ω driver on a 5° hyperboloid reflective wave source. MF/LF (front-firing): 1x 12” (30cm) high excursion neodymium 16Ω driver.LF (side-firing): 2x 8” (20cm) neodymium 8Ω drivers in series.Height x Width x Depth380 x 744 x 750mm (15” x 29 1/3” x 29.5”) including array assembly system Rigging access to axis height 344mm(13.5”)Shape10° Trapezoid.Weight: net57kg (125.7lbs) including array assembly system.Connectors1x AMPHENOL EP6 6-pole socket In; 1x AMPHENOL AP6 6-pole connector Through.Construction Baltic Birch ply with structured black coating.Front finish Molded Dark Grey Metal Grill.Flying points Integral flying system. Inter cabinet angle adjustments = 0.2°, 0.315°, 0.5°, 0.8°; 1.25°, 2.0°, 3.15°, 5°, 6.3°, 8.0°, 10.0° (logarithmic steps)
SYSTEM SPECIFICATIONS GEO D10 WITH NX242 TD CONTROLLER
Frequency response [a]60Hz – 19kHz ±3dBUsable range @-6dB [a]55Hz –20kHz ±6dBSensitivity 1W @ 1m [b]105dB SPL nominal (103dB SPL wideband)Peak SPL @ 1m [b]Configuration dependent (d)Dispersion [c]Vertical plane: Configuration dependent [d]. Horizontal plane: Configurable 80°/120° Low Frequency: Cardioid Crossover frequency LF-MF: 300Hz Active MF- HF: 1.1kHz Passive or Active (internally configurable).Nominal impedance HF: 16Ω; LF/MF front:16Ω LF rear: 16Ω.Recommended amplifiers HF: 875 to 1550Watts into 4Ω MF/LF front: 1750 to 3100Watts into 4Ω3x GEO D10 in Parallel LF rear section: 1750 to 3100Watts into 4Ω4x GEO D10 in parallel HF: 1000 to 1800Watts into 4Ω MF/LF front: 2000 to 3600Watts into 4ΩLF rear section: 2000 to 3600Watts into 4Ω6x GEO D10 in parallelHF: 1650 to 3000Watts into 2Ω MF/LF front: 3300 to 6000Watts into 2ΩLF rear section: 3300 to 6000Watts into 2Ω
SYSTEM OPERATION
Electronic Controller The NX242 Digital TD controller (with N Xtension Card) presets are precisely matched to the GEO DSeries cabinets and include sophisticated protection systems as well as advanced cardioid directivity DSP algorithms. Using GEO D Series cabinets without a properly connected NX242 &N X Tension Card will result in poor sound quality and can damage components.Array Design Arrays of less than 3x GEO D10 will provide poor dispersion control and are neither recommended nor supported. Sub Bass GEO SUB directional sub extends system low frequency response down to 35HzSpeaker Cables Active: 5(-) / 6(+): HF: 3(-) / 4(+):LF/MF Front: 1(-) / 2(+): LF Rear.Passive: 5(-) / 6(+): Not Connected: 3(-) / 4(+):LF/MF/HF Front: 1(-) / 2(+): LF Rear.Rigging System Please refer to the GEO D User Manual
