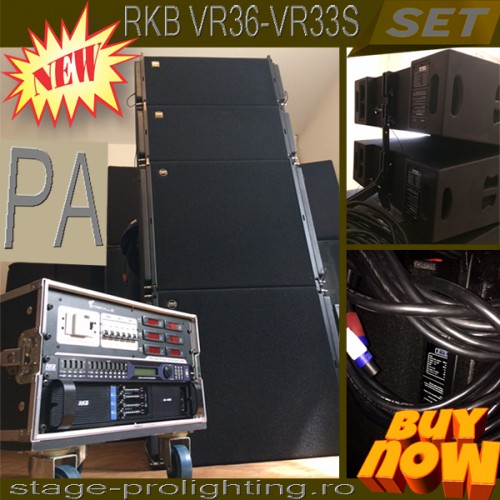

RKB VR36-VR33S PA SET

RKB VR36-VR33S PA SET

Precizare: sistemul prezentat, testat in show-room-ul magazinului stage-prolighting.ro de tehnicienii nostri, reprezinta la ora actuala cea mai buna oferta de sonorizare a noastra sub raportul calitate/pret.

Calitatea intregului sistem proiectat integral in Germania este realmente comparativa cu cea a sistemelor de 3-4 ori mai scumpe, brand-uri de renume. Un sunet cald, placut, puternic si clar in toata banda de frecvente. La acest sistem detaliile fac intregul, referindu-ne in mod special atat la finisaje, cat si la faptul ca pentru o aplicatie LIVE, (in care este foarte important sa se distinga clar fiecare instrument si vocea over the top), califica sistemul printre cele mai bune. In plus, deloc de neglijat, ar fi de mentionat aceasta facilitate oferita de subwoofere prin prezenta celui de-al doilea difuzor (de 15”, dedicat mediilor joase) care nu numai ca reduce considerabil dispersia joaselor nedorite si neclare pe laterale, dar impinge joasele atat in fata, cat si in spate (spre scena, exact ca un ejector) completand banda frecventelor joase si medii-joase alaturi de monitoarele standard amplasate, oferind astfel acea „grasime” atat de necesara pentru ca toti entertainerii sa se simta bine, beneficiind de o monitorizare completa si buna. De la sectia ritmica, pana la solisti si solisti instrumentisti, toti vor simti acest aport de frecvente, desi toata lumea canta in spatele PA-ului. Tocmai pentru a obtine acest tip de control, multe trupe prefera sa cante in fata PA-ului, ceea ce este o greseala din toate punctele de vedere!!! (incepand cu eventualele microfonii aferente, cat si al stressului prin expunerea indelungata la decibelii ridicati peste masura acceptata –vis-a vis de distanta la care se afla). O astfel de practica poate duce in timp realmente la probleme generale de sanatate, nu numai auditiv. Ca idee, pentru a fi mai expliciti, sunand la magazin va putem pune la dispozitie tabelul standard de expunere admisa ca timp in fata nivelului decibelilor. De remarcat de asemenea cablajul (6 x 2,5mm – 4+ 2 safety) made in Japan cu Neutrik speakon, precum si sistemul de prindere si asigurare in bride intre sub-uri si/sau modulele line-array foarte bine gandit de inginerii germani, simplu si eficient, cu unghiuri variabile pentru inclinatii, reglabile atat la suspendarea cu fly-bar-uri, cat si grounded. Este asemanator cu cel de la d&b, cu pin-uri safety. Mastile metalice, prevazute cu un burete anti estompare fonica de cea mai buna calitate, pot fi inlaturate accesand cateva suruburi cu cap special, iar marginile (sina metalica de sustinere) sunt prevazute cu fante pentru lid-uri de protectie (neincluse) la toate modulele line-array. Pentru transport recomandam case-uri pe role (neincluse) pentru VR-36 (cate doua in case), altfel devin prea grele, iar pentru sub-uri dolly pe role (neincluse), un sub avand 66 de kg. Ca o ultima mentiune: Un sistem care surprinzator (desi ajunge in peak la 141 dB) suna bine si la 10W si la 100W si la 1000 W si la 10000W si e realmente o placere sa-l asculti. Magazinul nostru pune la dispozitia clientilor care vor achizitiona acest produs toate manualele de operare a componentelor incluse, instructiuni specifice traduse in limba romana, oferind atat asistenta tehnica necesara la primul montaj, cat si softurile speciale (unice) pentru optimizarea sistemului si editarea parametrilor DSP cu un simplu laptop. Configuratia de baza a procesorului DSP matrix pentru VR-36/VR33S vine deja preinstalata si protejata, fiind de fapt User 1care se autoincarca direct de la pornirea procesorului. Este contraindicata folosirea acestui sistem fara acest preset (care insa permite ajustari). Folosirea sistemului fara procesor, legand pur si simplu speakerele la un amp fara DSP exclude garantia, deoarece acestea pot avea 1+/- cu 2+/- in link, ceea ce poate distruge speakerele prin anularea crossoverarilor si a celorlate filtre impuse. Din seria amplificatoarelor cu DSP incorporat acceptate sunt: LabGruppen, seria PLM, sau PLM+ si Powersoft. Fiecare au software aferent si diferit. Alte procesoare de sistem care pot fi folosite sunt Lake (SUA) LM 26, sau LM 44, pentru care sunt deja facute preseturile VR36 si VR33S. Sistemul se ataseaza foarte bine atat cu mixerele analogice, cat si digitale. A fost testat in toate felurile. Rezultate excelente.

RKB VR-36 -VRS33 -AK-4130 -PA Configurable reprezinta un sistem care poate fi configurat la cererea clientului. Pretul exprimat pentru acest sistem este pentru urmatoarea configuratie:

Component	Nr Buc	Descriere sumara
RKB VERA VR36	2	Modul line-array 3-way, avand 2 x 10"+ 2 x 8"+ 2 x 3", toate neodym, 1800W RMS/3600W in peak, max SPL 141 dB
RKB VRS33	2	Subwoofer line-array 1 x 18" front + 1 x 15" rear, 1800 W RMS, max SPL: 134 dB
RKB AK-4130	1	Amplificator de mare putere: 4 x 1300 W @ 8Ohm, 4 x 2100 W @ 4 Ohm, 4 x 2500 W @ 2 Ohm, la 220V
RKB DX448	1	Audio Procesor de sistem, system management
Cabluri speakon	SET	Set de cabluri speakon 4 x 2,5, NL4
Stairville PD	1	Distribuitor sarcina
Case dedicat	1	Cutie pe role pentru amp, DSP si PD-332

Intregul sistem astfel configurat poate fi testat in show-room-ul magazinului stage-prolighting.ro, fiind o configuratie de baza pentru o aplicatie band LIVE, DJ, sonorizare cu pana la 150-200 de persoane.

Configuratia standard pentru un sistem capabil sa faca fata fara probleme la un eveniment cu 500-600 persoane este insa 4 x VR36 + 4 x VRS33 cu doua amplificatoare AK-4130  care va opera in 4 Ohm/canal, obtinandu-se o putere totala de 16 kW, cu crossoverarile aferente facute de procesorul de sistem RKB DX448. De remarcat este flexibilitatea sistemului in sensul upgradarii ulterioare pentru sisteme mai mari, sau chiar aplicatii outdoor. Pentru cunoscatori, care stiu ce fel de clone sunt toate aceste componente, excelent realizate, este de asemenea de remarcat raportul calitate/pret exceptional, fiind practic de 4 ori mai scazut pretul fata de originale la un randament practic asemanator, ceea ce face acest sistem sa fie cat se poate de competitiv. Sistemele se configureaza la cerere si pot fi aduse by air in numai 10 zile direct de la producatorul Hongxiang ai carui re-selleri oficiali suntem incepand cu acest an. Achitarea comenzii se face integral in avans, iar pentru cantitati mai mari plata este garantata cu Bilet la Ordin. Garantia oferita este de 2 ani pentru fiecare component in parte. Toate incintele sunt vopsite cu vopsea germana, au componente numai neodym, ceea ce le confera fiabilitate sporita. Electroliticii din amplificator sunt Siemens, iar finalii sunt de cea mai buna calitate. DSP-ul managementului de sistem este o completare importanta a amplificatorului, astfel incat utilizarea in absenta unui procesor de sistem se exclude, care avand 4 in si 8 out este suficient pentru upgradari cu multiple amplificatoare (max 4 per rack). Calitatea sunetului este foarte buna, avand claritate in toata banda de frecvente bine distribuita. Pentru aplicatiile LIVE indoor cu pretentii, configuratia minima recomandata este dubla fata de cea prezentata, deci cel putin 4 x VR36 + 4 x VRS33. Sistemul de prindere este de asemenea flexibil, top-urile si basii putand fi atat suspendati, cat si grounded. Pentru suspendare sunt necesare si disponibile fly-ing bar-uri dedicate, precum si toate celelalte accesorii suplimentare (neincluse in pret).

Competitive Advantage:

• The line array speakers professional speaker box is using Germany water paint, which is environment-protected.
• Every line array speakers cabinets were manufactured by our own factory with CNC cutting machine, which can make sure the accuracy of the sizes.
• Glass Fiber Reinforced Plastic (FRP) can be applied to the cabinet on requirement, so as to make the box waterproof.

Applications

• Big clubs / Discos, LIVE PA SYSTEM
• Churches
• Indoor and outdoor shows
• Medium and Large scale events
• Permanent sound system installation

VR-36

Detailed Product Description

Components:	HF: 2 X 3"(Neo); MF: 2 X 8"(Neo); LF: 2 X 10"(Neo)	Frequency Response:	60 - 18kHz(±3dB)
Sensitivity(1W/1M):	110 DB MHF; 98dB LF	Peak SPL:	141 DB
Rated Power:	MHF: 800W; LF: 1000W	Peak Power:	MHF: 1600W; LF: 2000W
Impedance(Ohm):	8 Ohm (Bi-amp); LF 8 Ohm(Bi-amp)	Cabinet Finish:	Germany Sand Paint

Professional line array speaker boxes with sand texture paint pa system high output outdoor performance audio box

Model number: VR36 / VRS33

Characteristic:

• VR36 is decided to work in large-scale events in touring business or for installations in large halls and stadiums.
• With specially-designed speakers, durable and stable neodymium magnet drivers, high-quality birch plywood enclosures, VR 36 provides you with a brand new concept of sound reproduction.
• It is an extraordinarily compact Vertical Line Array system, coupled with brilliant, crisp speech intelligibility, tone quality and dynamics, and low-mid power you’ve only seen up to now in much bigger systems.  VR36 can satisfy you with such a compact box, saving your manpower, saving your cost, however, making you surprised at its performance.

• VRS33 is a unique design, with an 18 inch subwoofer at the front and a 15 inch subwoofer at the back. Dual-channel control gives a forward directed bass radiation with a damping of up to 15 dB in the rear. This results in a much more solid, tight and musical bass sound, especially in environments with difficult acoustics. Also actors on the stage and neighbors behind the venue are being spared from too much low frequency energy.
• Many different stacking variants are available with the VRS33. With the same system width and the same rigging gear, the VRS33 can be integrated inconspicuously into a VR36 array. But also classic L-R-stacks, horizontal rows in front of the stage and complete vertical bass arrays are possible. Either stacked or flown.
  Specifications:

Model	VR36
Components	HF: 2 x 3"(Neo); MF: 2 x 8"(Neo); LF: 2 x 10"(Neo)
Frequency Response	60 - 18kHz(±3dB)
Sensitivity(1W/1M)	110 dB MHF; 98dB LF
Maximum Peak SPL	141 dB
Rated Power(RMS)	MHF: 800W; LF: 1000W
Peak Power(RMS)	MHF: 1600W; LF: 2000W
Impedance(Ohm)	8 Ohm (Bi-amp); LF 8 Ohm(Bi-amp)
Crossover	/
Dispersion Angle (-6dB)	H 80 ° or 120° x  V 10°
Connectors	2xNL4 Speakon
Enclosure Material	High-strength Plywood
Cabinet Finish	Germany Water Paint
Dimensions (W*D*H)	700 x 580 x 310 mm
Net. W.	41 kg



Model	VRS33
Components	1 x 18" front / 1 x 15" rear
Frequency Response	33 - 120Hz(±3dB)
Sensitivity(1W/1M)	99 dB
Maximum Peak SPL	134dB
Rated Power(RMS)	1800W
Peak Power(RMS)	3600W
Impedance(Ohm)	8 Ohm
Crossover	/
Dispersion Angle (-6dB)	/
Connectors	2xNL4 Speakon
Enclosure Material	High-strength Plywood
Cabinet Finish	Germany Water Paint
Dimensions (W*D*H)	560*562*510 mm
Net. W.	66 kg

Compact High Performance Three-Way Line Array Speakers For Concert, Theatre And Commercial Events


VRS33

Detailed Product Description

Components:	1 X 18" Front / 1 X 15" Rear	Frequency Response:	33 - 120Hz(±3dB)
Sensitivity(1W/1M):	99 DB	Peak SPL:	134 DB
Rated Power:	1800W	Peak Power:	3600W
Impedance(Ohm):	8 Ohm X 2	Cabinet Finish:	Germany Sand Paint

Neodymium Magnet Subwoofer Speaker Boxes / 100 mm Voice Coil / high strength bass box  Characteristic:

• VRS33 is a unique design, with an 18 inch subwoofer at the front and a 15 inch subwoofer at the back. Dual-channel control gives a forward directed bass radiation with a damping of up to 15 dB in the rear. This results in a much more solid, tight and musical bass sound, especially in environments with difficult acoustics. Also actors on the stage and neighbors behind the venue are being spared from too much low frequency energy.
• Many different stacking variants are available with the VR S33. With the same system width and the same rigging gear, the VR S33 can be integrated inconspicuously into a VR36 array. But also classic L-R-stacks, horizontal rows in front of the stage and complete vertical bass arrays are possible. Either stacked or flown.

 Specifications:

Model	VRS33
Components	1 x 18" front / 1 x 15" rear
Frequency Response	33 - 120Hz(±3dB)
Sensitivity(1W/1M)	99 dB
Maximum Peak SPL	134dB
Rated Power(RMS)	1800W
Peak Power(RMS)	3600W
Impedance(Ohm)	8 Ohm X 2
Crossover	/
Dispersion Angle (-6dB)	/
Connectors	2xNL4 Speakon
Enclosure Material	High-strength Plywood
Cabinet Finish	Germany Water Paint
Dimensions (W*D*H)	560*562*510 mm
Net. W.	66 kg

  Applications

• Big clubs / Discos
• Churches
• Indoor and outdoor shows
• Medium and Large scale events

AK-4130 power amplifier

Detailed Product Description

8Ω Stereo Power:	1300W X 4	4Ω Stereo Power:	2100W X 4
2Ω Stereo Power:	2500W X 4	8Ω Bridged Power:	4200W X 4
4Ω Bridged Power:	5000W X 4

Class TD Audio Model FP10000Q Pro 1300 Watt x 4 CH Stereo Power Amplifier Amp Rack Mount 2U

 Model number: AK-4130

 Characteristic:

• The introduction of foreign advanced technology, more than 90% of components are same with foreign brands, ensure quality authentic as original.
• TD class amplifier circuit, the whole amplifier reaches up to 89% work efficiency, sound quality as Class A amplifier, and save energy.
• Regulators switching power supply, make sure the output power is constant in the AC 190-260V.
• The excellent cooling design provides better cooling effect.
• Use imported high-power fan
• Smart power limit function, according to the speaker impedance and power requirements, matches the output power
• Optional hard limiter and soft limiter function, available upon request, in the case of overload, the amplifier output is not clipping
• Full-featured protection: Power soft start, overload, overheating, short circuit, DC output, peak limiter, intelligent clipping protection, output zero-current switching.
• 5200 watts PMPO, 2500W@2Ohms,2100W@4Ohms,1300W@8Ohms
• XLR, ¼" (6.5mm Jack) Balanced Inputs
• Speakon and Banana binding post Outputs
• Front-to-Rear Airflow and Dual Cooling Fans

 Output Power, Per Channel

• 2 ohms: 2500W
• 4 ohms: 2100W
• 8 ohms: 1300W
• 16 ohms: 660W

Output Power, Bridged

• 4 ohms: 5000W
• 8 ohms: 4200W
• 16 ohms: 2600W

 Specifications:

Model	AK-4130
8Ω Stereo Power	1300W x 4
4Ω Stereo Power	2100W x 4
2Ω Stereo Power	2500W x 4
8Ω Bridged Power	4200W x 4
4Ω Bridged Power	5000W x 4
Slew Rate	30V/us
Damping Factor(100Hz)	>200:1
Cross Talk (1kHz)	>85dB
S/N Ratio	112dB
T.H.D.  rate power@8Ω 1KHz	<0.1%
Frequency Response	20Hz-35kHz,±0.1dB, 1W
Gain Selectable	23,26,32,35,38,41,44dB
Input connectors	XLR Plugs
Protection	Overheating, clipping, overcurrent, overload, short circuit.
Power Supply	AC 220v/50~60Hz
Dimensions(W×D×H)	483x398x89(2U)
Net W.	13kg

 AK-4130 Professional Power Amplifier is a high-end product, using the latest R&D leading technology. The efficient and reliable protection circuit makes it more safely. It is a lightweight and space-saving power amplifier.

Applications:

• Indoor or Outdoor Performance
• Live performance venues
• Sound system rental
• Indoor or Outdoor Stadium
• Any applications that require stable power amplifier

 Competitive Advantage of RKB Audio:

• Effective use of technology in the production process
• Superior product quality (features, benefits, durability, reliability)
• Branding (strong customer recognition & desire; brand loyalty)
• Access to the most effective distribution channels

 RKB DX480 4-in 8-out processor

• Each input has 5 parametric filters and each output has 7 parametric filters. Both input and output filters can be selected to be Bell or Shelving filters. On the outputs a Hp and a Lp filters up to 24dB/Oct. Output Limiter is working on the RMS value of the limiter's input. The Limiter's THR can range up to -30dBu. Each input and output channels have delays up to 850ms, with steps of 22usec.Linking functions between inputs and linking functions between outputs are available. A function is allowing to have ramps closing the output level on parameter changes, when the unit is used as installation unit; this function can be excluded when the unit is used live and it is necessary to perform small changes to the set parameter...on the fly. The Pc SW for the remote control is allowing to connect in net up to 32 units.
• Inputs: XLR balanced
  *Outputs: XLR balanced, TCPIP connection
  *Minimum Load: 150ohm
  *User memories: 24
  *Recall memories: 24
  *VU metering: 7 led for Inputs [-20dBu up to +15dBu; Clip]
  7 led for Outputs [-20dBu up to +15dBu; Clip; Limit]
  *Output Leds can be used for displaying the Output
  level OR the Limiter activity
  *THD+N: 0.001% at 1kHz 0dBu
  *S/N: >110dB
  *Frequency Response: 20Hz – 20kHz ;
  -0.5dBu at 20Hz and 20kHz
  *A/D and D/A Resolution: 24bits
  *Process Resolution: 24x32 bit for filtering process; 96 bits resolution on intermediate computation results
  *Display: Graphic 2x20 characters
  *Size: 19"X(1U)
  *Process:
  up to 24dBu/Oct HP/LP, +-15dB gain Bell and
  Shelving filters, RMS compressor/limiter
  [Attack time from 5ms up to 200ms (1ms resolution up
  to 20ms, then 10ms resolution up to 100ms and 20ms
  resolution up to 200ms), Release time from 0.1 sec up
  to 3 sec (0.1sec resolution)], delay on Inputs and
• Outputs up to 848.998ms with 21us increment steps.
• Limiters:
  *Threshold: from 20dBu up to -10dBu
  *Attack time: Attack time from 5ms up to 200ms (1ms resolution upto 20ms, then 10ms resolution up to 100ms and 20ms resolution up to 200ms)
  *Release time: Release time from 0.1 sec up to 3 sec (0.1sec resolution)
  *High pass and Low Pass Filters
  *Frequency(HPF): from 1st order (Butterworth -6dB/Oct) up to 4th Order(Butterworth, Linkwitz or Bessel -24dB/Oct)
  *Frequency(LPF): from 1st order (Butterworth -6dB/Oct) up to 4th Order(Butterworth, Linkwitz or Bessel -24dB/Oct)
  *Filter's setting step:1/24th of octave
  Delay & Gain:
  Maximum Delay: 848.998ms by 21us increment/decrement step, oneach Input and Output channel
  Spdif input gain(Digital):
  0dBu on RCA connector
  Parametric Equalization: 5 filters on each input assignable as Bell or Shelving
  7 filters on each output assignable as Bell or Shelving
  Filters:symmetrical Bell or High/Low Shelving up to second order
  Filter gain:for Bell and Shelving the gain is ranging from -15dBu upto +15dBu by 0.5dBu resolution steps
  Centre frequency:
  selectable with a 1/24th of octave resolution steps from20Hz up to 20kHz
  Filter Q/BW:Q from 0.05 up to 3 by 0.05 resolution steps
