QSN Audio Line-array Base Modules SET

0 opinii | Spune-ţi opinia

Cod produs: QSN Audio Line-array Base Modules SET
Disponibilitate: pre-comanda

52.800,00 RON TVA inclus

Pret: 10.348,80€
VAT Incl.

Descriere
Opinii (0)

Descriere

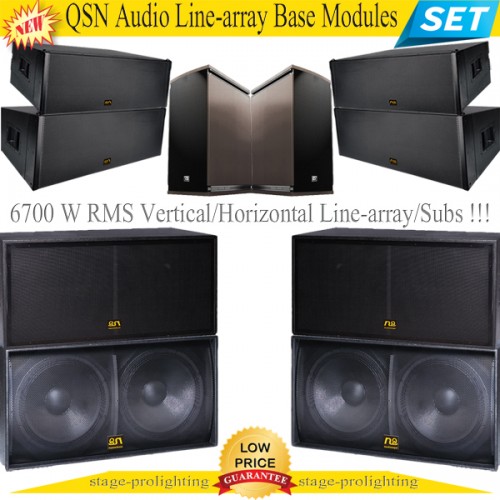

QSN Audio Line-array Base Modules SET este setul de baza de la care se poate configura un veritabil sistem line-array.

De sine statator, acest sistem deja este o combinatie care poate face fata fara probleme unei audiente de 600 de persoane. Deoarece este un set pasiv, recomandam folosirea pentru amplificare Rack IV, sau rack 5, precum si alte rack-uri de puteri dedicate line-array. Combinatia vertical/horizontal line-array, alaturi de suburi nu numai ca asigura o plaja mai mare de dispersie, dar prin caracteristicile complementare ale frecventelor se obtine un sunet foarte bun, cald si precis. Un procesor de sistem este cel putin obligatoriu (recomandam dbx 360, sau Xilica 2 in 6 out).

Import China, 2 ani garantie!! Produsele se importa numai cu pre-comanda si sunt aduse by sea (din cauza volumului si greutatii) in 30 de zile.

QSN Audio L-12, 3 Way L-12 line-array

L-12 three way has double 12' woofer,4pcs 6" Middle and double 2" Compression driver.

Model	L12
System	3-WAY FULL RANGE
Frequency response	40Hz-18KHz
Driver	LF:12”×2,HF:6”×4,HF:2"×2
Nominal impedance	8 Ohms
System sensitivity	100dB
Rated power	1000W
Peak power	4000W
Maximum SPL	136dB
Dispersion Angle	horizon:100° ,verticality:16°
Crossover mode	Inside crossovers
Suspension	Linear suspension
Net weight	67.5KG
Size(mm)	1125W×563D×425H
Package size(mm)	1195W×625D×630H(flight case )

Model	B218
System	SUB BASS
Frequency response	28Hz-400Hz
Driver	LF:18”×2
Nominal impedance	4 Ohms
System sensitivity	105dB
Rated power	1600W
Peak power	6400W
Maximum SPL	143dB
Crossover mode	External divider
Suspension	after the reservation 4 universal wheel mounting hole
Net weight	100KG
Size(mm)	1170W×920D×580H
Package size(mm)	1220W×970D×647H

S-218 is a dual 18" 1200W subwoofer speaker.

And S-218H is a dual 18" 1600W subwoofer speaker.

Model

S218

S-218H

System

SUB BASS

Frequency response

30Hz-400Hz

28Hz-400Hz

Driver

LF:18”×2

LF:18"×2

Nominal impedance

4 Ohms

System sensitivity

102dB

105dB

Rated power

1200W

1600W

Peak power

4800W

6400W

Maximum SPL

139dB

143dB

Crossover mode

External Crossover

External crossover

Suspension

On the floor

Net weight

74KG

100Kg

Size(mm)

1070W×780D×565H

1170W×920D×580H

Package size(mm)

1110W×820D×630H

1220W×970D×647H

LA - 15 is a compact structure, high pressure, high sensitive all frequency speaker, is very convenient, suspension and superimposed particularly applicable to high-end bar, slow rock, theatre and places of fixed installation applications, can also be applied to the flow performance.Designed by speakers correct permutation and combination, make LA - 15 speaker system formed a huge set of point source, to produce a coherent and strict wavefront, solves the sound field coverage and the problem of insufficient pressure.

Enclosure with 18 mm top Finland splint, surface adopts imported wear waterproof clip figure black paint, LA series stereo sound clear, have administrative levels feeling, energy, strong sense of strength.Applicable to the high bar, performing arts center, small theaters and other places of main amplification system.

Product Parameter

model：	LA-15
LF driver：	1 x 15" 2Way
HF driver：	1,75”
Frequency response(Hz)：	50 - 20k Hz
Impedance(ohms)：	8Ω
Rms power (W)：	550W
Peak power (W)：	2200W
Sensitivity(SPL 1W@1M)：	131dB
Crossover point (Hz)：	1.6kHz
Tweeter protection：	PTC linkage protection device
Structure：	plywood
Connector：	SPEAKON*2
Net weight(Kg)：	50Kg
