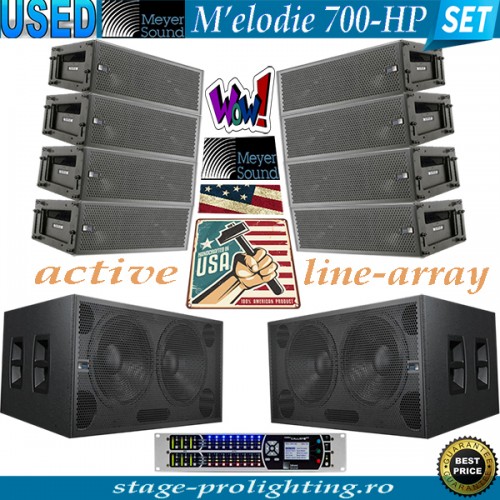

Used Meyer Sound M'elodie 700-HP SET

Meyer Sound M'elodie-700-HP Used, Second hand, se compune din:

8pcs M'elodie array loudspeakers in flight cases for 3pcs
2pcs 700-HP subwoofers on dolly
1pc   Galileo Controller
2pcs  Rigging frames
1set  Cabling.

Intreg setul este second-hand, in conditie foarte buna, fiind verificat si testat de tehnicieni. Poate fi adus in numai 5 zile, plata integral anticipat garantata cu Bilet la Ordin si are o garantie de 48 de ore pentru probe. Setul este "la cheie".

Photos on request.



M'elodie

The Melodie loudspeaker is a self-powered, three-way design featuring drivers designed and manufactured at Meyer Sound’s Berkeley, California, factory.
The low/low-mid section features two high-power,neodymium-magnet, 8-inch cone drivers with 1.5-inch voice coils, created to meet the power requirements of the system. The drivers are a proprietary design employing neodymium magnets for higher efficiency and power handling with reduced weight.
The lowest frequency range is reproduced by these high-power drivers working in tandem, each powered by a dedicated amplifier channel. To assure the smoothest response in the critical midrange and crossover region, M’elodie incorporates a complex active crossover design.
For low frequencies, both drivers work together, but in the low-mid frequencies only one of the two 8-inch drivers is active. This technique eliminates interference between the drivers that would otherwise occur at shorter wavelengths, while at the same time maintaining optimal polar and frequency response characteristics at the crossover frequency.
The high-frequency section uses a 1.2-inch exit, 3-inch diaphragm compression driver with a neodymium magnet, powered by a dedicated amplifier channel. The output of the driver is coupled to a 100-degree (horizontal coverage) constant-directivity horn through a custom REMmanifold.
The REM is a patented coupling device that introduces driver output to the horn throat across a very short path,effectively controlling the dispersion characteristics, but with dramatically reduced distortion in comparison to other techniques.

700-HP

Ultra High-Power Subwoofer

• Stackable
• Flyable using optional rigging kit
• Extremely low distortion for ultimate low-frequency clarity
• Very high peak power yields excellent transient reproduction
• Ultra-efficient neodymium magnet drivers
• Transportable in blocks using optional heavy duty caster frame

The Meyer Sound 700-HP ultra high-power subwoofer sets a new standard for the power-to-size equation. The 700-HP's power and bandwidth handle high continuous operating levels and extreme transient information with minimal distortion in its operating frequency range.

Meyer Sound’s rigorous design approach has been applied to extract the greatest efficiency from every part of the system, resulting in the 700-HP’s effortless reproduction of low frequency transient information. As a self-powered system, the transducers, amplification and control electronics of the 700-HP are created as a symbiotic system that optimizes performance and maximizes its tremendous power.

The operating frequency range of 28 Hz to 150 Hz complements other Meyer Sound loudspeakers and line and curvilinear arrays in sound reinforcement applications requiring maximum headroom at the low end of the frequency spectrum.

The 700-HP's efficiently tuned cabinet houses two Meyer Sound-designed and -manufactured back-vented, long-excursion, 18-inch cone drivers. Each driver features a 4-inch voice coil and is rated to handle 1200 AES watts. The drivers have also been engineered for extreme efficiency, using high-gauss neodymium magnets for the most powerful magnetic field strength. High magnetic field strength increases the driver’s sensitivity, which yields greater output, while keeping heat dissipation requirements within operational tolerances.

An integral two-channel class AB/H amplifier with complementary MOSFET output stages supplies total peak power of 2250 watts (1125 watts per channel). With twice the amplifier power of the 650-P subwoofer, the 700-HP produces an average of 3 dB more overall SPL, with enormous headroom to accommodate the most extreme demands with ease. Recent tests conducted by Meyer Sound show the 700-HP producing significantly higher output than other "high-power" subwoofers.

The amplifier, control electronics and power supply are integrated into a single, field-replaceable module mounted in the rear of the cabinet. The cabinet is constructed of multi-ply hardwood and coated with a textured black finish. Integral metal grilles lined with acoustical black mesh protect the cone drivers. Designed mainly for stage or ground placement, the stackable 700-HP includes plastic skids on the bottom of the unit, preventing damage to the enclosure or the unit below. The skids align with slots on the cabinet’s upper surfaces ensuring secure, aligned stacking. For maximum convenience in touring situations, the 700-HP can even travel in stacks on the MCF-700 caster frame.

The 700-HP is truck-smart, with exterior cabinet dimensions suitable for both European and US truck widths. An optional QuickFly rigging kit is available, installed at the factory or as a field upgrade. Up to 10 cabinets can be suspended from the optional MTG-700 top grid in a straight hang at a 7:1 safety factor.

Options available for the 700-HP include weather protection and finishes in custom colors for fixed installations and other situations requiring specific cosmetics.

An optional RMS remote monitoring system module allows comprehensive monitoring of all key system parameters on any RMS-equipped host PC. In addition, Meyer Sound’s MAPP Online multipurpose acoustical prediction program allows quick prediction of coverage, frequency response, impulse response and maximum output of the 700-HP and other Meyer Sound loudspeakers and loudspeaker systems.

Applications

• Stadiums, arenas and concert halls
• Medium-to-large theatres and clubs
• Theme parks
• Cinema
