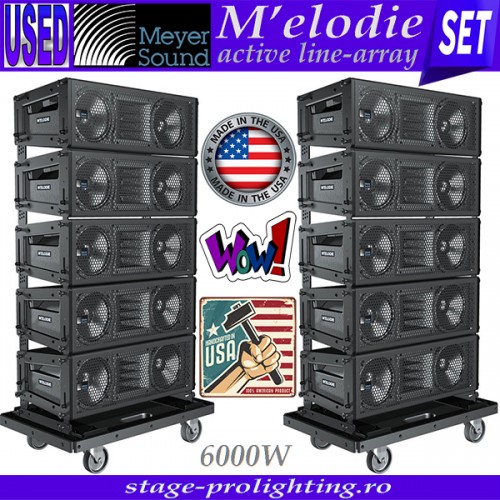

USED Meyer Sound M'elodie active SET

USED Meyer Sound M'elodie active SET se compune din 10 module active line-array Meyer Sound M'elodie fabricate in SUA si 5 case-uri (cate doua module in case). Produsele sunt fabricate in 2017 si mai au 6 luni garantie. Desi second-hand, produsele arata ca noi, fiind in stare tehnica excelenta (foarte putin folosite numai indoor). Se aduc in numai 5 zile cu plata integral anticipat garatntata cu Bilet la Ordin. Fiabile si avand o calitate a sunetului extraordinara, aceste module active reprezinta o alegere foarte buna sub raportul calitate/pret, noi fiind practic aproape de doua ori mai scumpe. 131 dB, 600 W fiecare, 70-18000 Hz, 2 x 8"+ 1,5/3" toate neodym, iata numai cateva din caracteristicile de baza ale acestor excelente module line-array. Alaturi de 4 subwoofere bune veti obtine un sunet de invidiat. Recomandam subwoofere tot de la Meyer Sound, seriile 500, 600, 700, de asemenea auto-amplificate, iar pentru super performanta (*optional) un procesor Galileo (eventual modelul 616). Ideale pentru aplicatii indoor atat instalatii fixe, cat si rental.

Detalii tehnice:

M'ELODIE SPECIFICATIONS

The low-frequency power response of the system will increase according to the length of the array.

Operating frequency range

70 Hz - 18 kHz

Note:

Recommended maximum operating frequency range. Response depends upon

loading conditions and room acoustics.

Free field frequency

response

76 Hz - 16 kHz ±4 dB

Note:

Measured free field with 1/3-octave frequency resolution at 4 meters.

Phase response

1.5 kHz - 16 kHz ±30°

Maximum peak SPL

131 dB

Note:

Free field, measured with music referred to 1 meter.

Dynamic range

>110 dB

Horizontal coverage

100°

Vertical coverage

Varies, depending on array length and configuration

Acoustical crossover

1100 Hz

Note:

At this frequency, the transducers produce equal sound pressure levels.

TRANSDUCERS

Low/low-mid frequency

Two 8" cone drivers with neodymium magnets

Nominal impedance: 4

Ω

Voice coil size: 1.5"

Power handling capability: 600 W (AES); 900 W peak

Note:

Power handling is measured under AES standard conditions: both transducers driven

continuously for two hours with band limited noise signal having a 6 dB peak-average ratio.

Peak power handling is measured with both transducers driven for 100 milliseconds with

pink noise signal having a 12 dB peak-average ratio.

Note:

To eliminate interference at shorter wavelengths, the two 8-inch drivers work in

combination at lower frequencies (70 Hz - 320 Hz). At mid frequencies (320 Hz - 1100 Hz)

only one cone driver is active to maintain optimal polar and frequency response

characteristics.

High frequency

3" compression driver

Nominal impedance: 8

Ω

V

oice coil size: 3"

Diaphragm size: 3"

Exit size: 1.2"

Power handling capability: 180 W (AES); 360 W peak

Note:

Power handling is measured under AES standard conditions: transducer driven

continuously for two hours with band limited noise signal having a 6 dB peak-average ratio.

Peak power handling is measured with transducer driven for 100 milliseconds with

pink noise signal having a 12 dB peak-average ratio.
