CVR Active line-array SET

0 opinii | Spune-ţi opinia

Producător: CVR Pro-Audio
Cod produs: CVR Active line-array SET
Disponibilitate: pre-comanda

55.920,00 RON TVA inclus

Pret: 10.960,32€
VAT Incl.

Descriere
Opinii (0)

Descriere

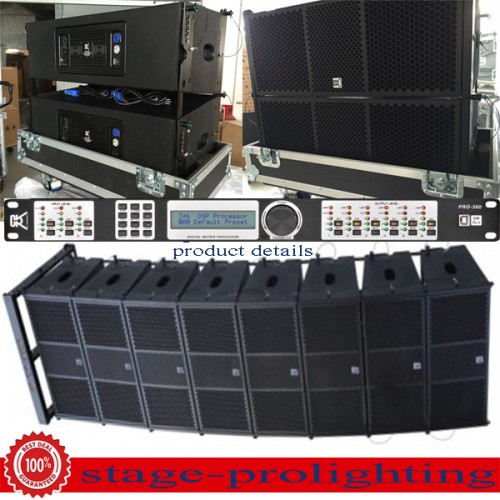

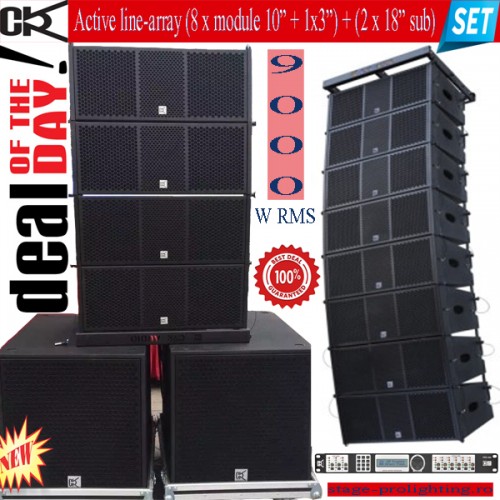

CVR Active line-array SET se compune din 8 module active line-array model W-210B&W-210BP , 2 suburi active CVR W-18P si un procesor de sistem CVR.Pro-360. Import China numai cu pre-comanda, produsul poate fi livrat in 15 zile si are 1 an garantie individuala la toate componentele.

Detalii Tehnice:

W-210B&W-210BP is an active 2-way line array system which is made of two 10＂neodymium woofers, one 3＂titanium neodymium compression drivers and high-performance low-distortion compression driver with innovative horn design of wave phase philosophy. Wherever low frequency extension is required.

Model	W-210B & W-210BP(Active)
Type	Line array system
Frequency Response	60Hz-20KHz±3dB
Power handling	LF 700W(RMS)1400W(PEAK)
	HF 100W(RMS)200W(PEAK)
Power amp	900W/8ohm (W-210BP)
Amplifier type	Switching power amp, class D circuit
Other functions	Built-in crossover(W-210BP)
Sensitivity	LF 101dB(1W@1M)
	HF 109dB(1W@1M)
Max@S.P.L	LF 127dB(PEAK/1M)
	HF 129dB(PEAK/1M)
LF section	2×10"(260mm) neodymium woofer
	75mm(3in)coil
Nominal impedance	8 ohm
HF section	1×3" neodymium compression driver
	with 75mm titanium diaphragm
Nominal impedance	8 ohm
Output section	2-channel
Dispersion pattern	110°H×10°V
Finish	Water-proof,wear-resistant textured
	black paint
Array design	Arrays of less than 3×W-210B will
	provide poor dispersion control and
	are neither recommended nor supported
Speaker cables	LF 1(+)1(-) HF 2(+)2(-) (4-pole)
Rigging system	Please refer to the W-210B user's
	manual before any operation
Input connectors	2×NL4MP speakon
Recommend crossover	LF 70Hz-2KHz
	HF 2KHz-20KHz
Dimensions	737 x 288 x 415mm(W x H x D)
Package dimensions	810 x 360 x 480mm/0.14cbm
Enclosure	Birch plywood
Net weight	31kg (W-210B) 34kg(W-210BP)
Gross weight	31kg (W-210B)35kg (W-210BP)

CVR W-18P

Active arraysubwoofer1x18'' woofer ,4"voice coildriver power: 600WAmp power: 900watt RMS Dimensions: 640*502*600mmbirch Plywood48kg

CVR.Pro-360

24-bit,48kHz sampling rate,∑-△ AD / DA convertor,32 bits DSP chip.

Input processing includes Gain, Mute, Noise gate, high-cut, low-cut, 8 parameter EQ, Phase, Delay and so on (PRO-480 without Hi-cut Low-cut And PEQ)

Output processing includes crossover , 5 parameter EQ,Gain, Mute, compressor/Limiter, Phase, Delay and so on

Every input and output can do matrix assign flexibly

Adjustable PEQ frequency, Gain and bandwidth; we can choose style: PEAK、H-SHELVE、L-SHELVE

We can choose the style of all High-cut , Low-cut filter and Distributor unit: Butterworth、Linkwitz-Riley、Bessel;Choice slope is from -6dB/Oct to -48dB/Oct

Adjustable compressor / limiter threshold, ratio, attached time and release time

Adjustable threshold, attached time, release time of all noise gate

All delay module's delay time can reach over 682ms

Parameter setting of every channel can copy freely

Interput signal tester,output can choose pink noise,white noise , 20Hz-20kHz adjustable sine wave and adjustable signal range

2×20 word LCD , light and key-press incorporate design, unique one key-press process method, bring the users with convenient and rapid operating

32 user preset; status and every preset can save and adjust separately, with code protecting function

With PC , we can do remote control by USB and RS232 connector

256 units linkable by RS485, and do remote link controlling by center-control equipment

Model	PRO-360	PRO-360	PRO-480
Configuration	3 in 6 out	3 in 6 out	4?in?8 out
Power Supply	AC 110V/220V 50Hz/60Hz	AC 110V/220V 50Hz/60Hz	AC 110V/220V 50Hz/60Hz
Product Dimension	482×232×44mm(HxWxD)	482×232×44mm(HxWxD)	482×232×44mm(HxWxD)
Shipping Dimension	605×310×110mm? (HxWxD)	605×310×110mm? (HxWxD)	605×310×110mm? (HxWxD)
Net Weight	4.1kg	4.1kg	4.1kg
Gross Weight	5kg	5kg	5kg
