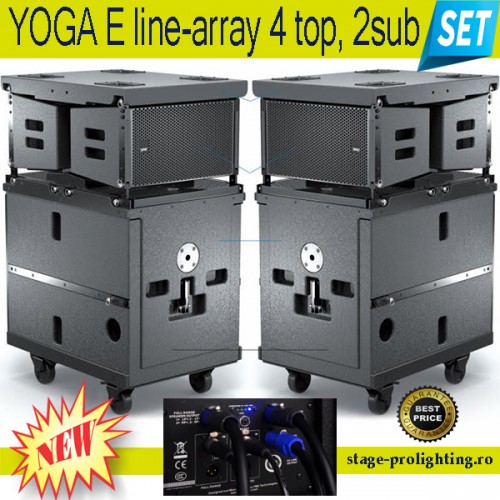

YME YOGA E active line-array 4 top, 2 sub SET

Mini sistem active line-array YOGA  cu o configuratie originala a producatorului chinez YME Systems.

Configuratia mini-sistemului este: 4 x module auto-amplificate line-array YG 65 + 2 x suboofere active line-array YG 18A si toata conectica necesara.

Cu mentiunea ca magazinul nostru nu se adreseaza exclusiv profesionistilor, ci si clientilor poate mai putin avizati, facem urmatoarele precizari, fara a incerca sa diminuam avantajele achizitiei unor produse cu brand cunoscut din CE, sau SUA. Desi exista o oarecare rezerva din partea clientilor in ceea ce priveste produsele fabricate in China, magazinul nostru prin ofertele prezentate, atent selectionate, , deci si cea de fața, vine in intampinarea clientilor cu cateva alternative care merita sa fie luate in consideratie nu numai sub raportul calitate/pret si a detaliilor tehnice prezentate de producatori, dar si din punct de vedere al feed-back-urilor studiate, pozitive, venite din partea diversilor cumparatori din diferite țari. Indraznim sa facem urmatoarea afirmatie: ”in ceea ce priveste sistemele line-array, cheia unui sound bun nu consta decat partial in calitatea speakerelor, definitiva fiind insa procesarea. Cunoscand cu precizie componentele unui modul line-array, tipul de difuzoare si drivere si caracteristicile acestora, cu un procesor de sistem management bine reglat, acordat parametrilor aferenti componentelor poti cu putin efort sa-ti pui cu adevarat in valoare echipamentul detinut. In absenta DSP-ului vei avea doar un speaker care ”țipa” tare, nu neaparat si clar, sau distinct raportat la frecvente. De asemenea, un amplificator cu un DSP bun incorporat (recomandam in mod special seria PLM LabGruppen, sau similare) care au parametri editabili poate face exact acelasi lucru ca un procesor independent pre-amp direct pentru amplificare. Deci, aici e o parte din ”secretul” unui sunet bun. Modulul BX-10 are tot ce-i trebuie sa-si faca treaba nu numai tare, ci si bine. In plus, modulele line-array, comparativ cu speakerele traditionale au urmatoarele avantaje deloc de neglijat: dimensiuni reduse, randament mai mare (datorita tehnologiei), posibilitati de suspendare, configurari variate/economie de spatiu, scalabile, usor transportabile, prinderi rapide nu numai la suspendare, dar si ”grounded”, elemente de fixare, etc.” Sistemul, configurat cu astfel de module, completat cu subwooferele adecvate tipului de aplicatie devine astfel o optiune in fata unui buget limitat.

Import extra-comunitar, garantie 2 ani oferita de producator, livrabil in 8-10 zile cu plata integral anticipat. Pentru cotatia de pret, cotatia de transport a zilei, configuratii si alte detalii va rugam sunati la magazin. Fiind un produs nou scos pe piața, fiabilitatea produsului nu ne este cunoscuta. Producatorul insa are referinte foarte bune, livrand atat in CE, cat si SUA.

Detalii Tehnice:

The YG 65 is a single10" two way bi-amp passive line array speaker specially designed to small-medium live touring performance which needs crucial sound quality. YG 65 is a true line array speaker which designed by meeting all criteria of Wave front Sculpture Technology (WST)--A true line array should be guided strictly by physics principle of WST.

YG 65 utilizes a high quality neodymium 1.4" horn throat compression tweeter with 65 mm (2.6") voice coil and a 10” high output neodymium mid-low driver with 75mm voice coil and humidity resistant paper cone, coupled with an optimized waveguide (10° vertical and 90° horizontal dispersion). YG 65 ensures extraordinary performance with penetration and smoothness.

Ultra compact and solid enclosure made from 15mm or 18mm high quality plywood and finished with durable water paint for touring use.The 2 nylon strips offer protection to the bottom of the enclosure from scratches. Together with the slot which designed on the top of enclosure, the nylon strips also facilitate installation of one enclosure to another much easier.

YG 65 can be either flown, ground stacked or pole-mounted on bass speakers(YG 18/A) as main PA or ground stacked with subwoofer (YG SUB/YG SUBA) for front fill use.The integrated rigging system benefits from 3-point loading design. It’s precisely made and highly safe with durable magnetic PIN. The rigging system offers angle adjustment from 0 to 10° with 2° step.

Frequency Response	90Hz--18kHz(±3dB)
	80Hz--20kHz(-10dB)
Sensitivity (@1w / 1m)	HF:110dB, LF:103dB
Nominal Impedance	HF:16Ω, LF:16Ω
Power Rating (AES)	HF:80W, LF:350W
LF Driver	1x10 "(75mm voice coil) neodymium
HF Driver	1x2.6 "(1.4 "throat) neodymium compression driver (65mm voice coil)
Nominal Coverage Angle	90 ° (H), Vertically adjustable maximum 10 °
Maximum SPL	HF:129dB SPL, 135dB SPL peak
	LF:128dB SPL, 134dB SPL peak
Crossover Point	1.3kHz
Dimensions (H x W x D)	279x 526 x 339 mm
Weight	20kg
Connection	2 x Neutrik NL4MP, LF：1+1-, HF：2+2-
Enclosure	15mm, 18mm multilayer birch plywood
Finish	Black water-based paint
Grille	Black steel mesh + acoustic transparent cloth

YG 18A is the active version of YG 18.

---

---

Thanks to the highly powerful multi-channels D class switching power amplifier module (1 X 1000W@4Ω + 2 X 2500W@4Ω), one active YG 18A can drive maximum 4 pieces passive YG 65 line array speakers. The amplifier module is developed by exceptional analog circuit technology which is without unwanted DSP treatment. It delivers widely open and crystal clear sound. The built-in analog crossover and limiter make the system well-protected and truly plug and play.



Frequency Response	45Hz - 100Hz (± 3dB)
	35Hz - 150Hz (-10dB)
Power Rating (AES)	800W
LF Driver	1x18 "(100mm voice coil), Ferrite
Maximum SPL	127dB SPL, 133dB SPL peak
Dimensions (H x W x D)	750x556x655(mm)
Weight	79kg
Connection	XLR+POWERCON+SPEAKON
Enclosure	15mm, 18mm, 24mm multilayer plywood
Rigging	Four fly points + pole mounts
Finish	Black water-based paint
Grille	Black steel mesh + acoustic-transparent cloth



Three-Channel Class D Switching Power Amplifier Module
	HF channel	LF channel	SUB channel
4Ω	1000W	2500W	2500W
Total Harmonic   Distortion (1Khz, Full Power 4Ω)	≤1%	≤1%	≤1%
SNR	102.5dB	103dB	103dB
Active Gain (1KHz, 8Ω)	20dB	32dB	32dB
Input	Neutrik & male XLR  & female XLR
Input Impedance	20K Ω balanced / 10K Ω unbalanced
Input Connection (Full-Range)	Neutrik NL4 (1+/1-: LF / 2+/2-: HF)
Input Connection (Sub)	Neutrik NL4 (1+/1-: SUB)
Output Circuit Type	Class D
Cooling System	The airflow direction is from the back to the front of the equipment
Voltage Requirements	200-240V  ~ 50-60Hz
