Descriere

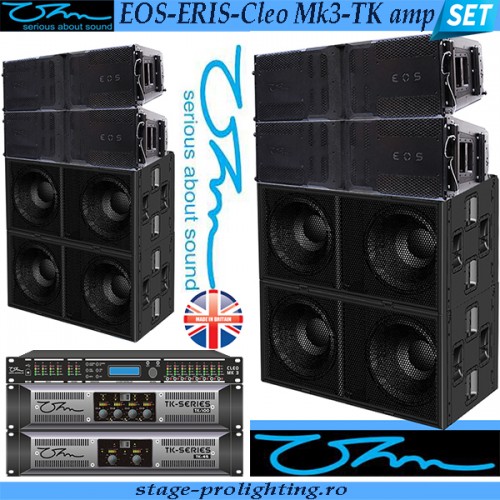

Ohm-EOS-ERIS-Cleo-Mk3-TK reprezinta un sistem de sonorizare performant, produs in Manchester (Marea Britanie) si se compune din:
|
Component |
Descriere de baza |
Nr Buc |
Detalii |
|
Cleo Mk 3
|
4-in 8-out system management unit
|
1 |
Speaker management |
|
TK-100
|
4-Ch high powered D class amplifier
|
1 |
4 x 1400W @ 8 Ohm |
|
TK-45
|
High power 2-Ch concert amplifier
|
1 |
2 x 2500W @ 4 Ohm |
|
Eris Subwoofer
|
Dual 18” 4 ohm subwoofer cabinet
|
4 |
2 x 18”, 1700W, 141dB, 25-200 Hz |
|
EOS line-array |
Dual 12 inch Line array
|
4 |
2 x 12”+4 x 6,5”+ 2 x 4”, 147dB, 1120W |
Sistemul se aduce numai cu pre-comanda, plata integral anticipat, termen de livrare aprox 8-10 zile lucratoare. Are o garantie oferita de producator de 3 ani!!! Pentru ultima cotatie de pret va rugam sunati la magazin.
Detalii tehnice si prezentare produse:
Cleo Mk 3
4-in 8-out system management unit
The Cleo MK3 is a powerful digital signal processor using the Ohm Spyder software, incorporating the same capabilities as the Oyster plus new and extended functionality, scaled up to meet the needs of the most demanding applications. The unit features 4 analogue inputs, a digital stereo AES3 input, and 8 analogue outputs. The comprehensive DSP system includes a flexible routing matrix and a fully adjustable signal chain on each input and output channel. Multiple units can be controlled remotely over a wired or wireless network by connecting to a router via the Ethernet port, and the Spyder software contains customisable grouping functionality to quickly configure more than one unit. The Cleo can also be controlled via direct connection to a computer using the USB port, or the unit’s front panel controls can be used to adjust any setting manually – however, once a setup is complete the front panel can be locked via software, making the unit tamper-proof. The Cleo’s on-board memory has 100 preset slots, and once the data has been loaded the unit can function fully stand-alone.
The DSP system features a wide selection of parametric EQ and crossover filter types. Zero-attack peak limiters and true RMS compressors are available to protect loudspeakers from excessive voltage peaks and power, or to shape the dynamics of the audio. A delay of up to 1 second can be added to each input and output separately, which in combination with the phase switch allows the sound from multiple speakers to be accurately aligned. The analogue inputs feature an electrically balanced input stage, accepting signals of up to 24 dBu peak (12.3 V) which match any audio source on the market today. The 8 outputs are protected by relays which switch the signal on only when the DSP is operational, preventing clicks and pops on startup, shutdown or during firmware updates. With the Cleo’s network control and extended DSP capabilities, no matter what the scale of your installation or touring setup is, full control over the sound system is in your hands.
Product Features:
- 64 bit digital processing
- 10 parametric filters per in / out
- 2 second delay per in / out
HARDWARE
Inputs
4 analogue (electrically balanced), 1 digital AES3
Outputs
8 analogue (impedance balanced)
Input Impedance
12 kΩ unbalanced / 24 kΩ balanced
CMMR
>45 dB 50 Hz – 10 kHz
Output Impedance
50 Ω unbalanced / 100 Ω balanced
Maximum input voltage
24 dBu peak (12.3 Volts)
Maximum output voltage
12 dBu peak (3.1 Volts)
GENERAL DSP FUNCTIONS
Adjustable delay
Up to 1 second per each input and output channel (up to 2 seconds total)
Delay step
1 μs
Channel gain
-48 to +12 dB per input and output channel
Routing matrix gain
-48 to +12 dB
FILTERS
Parametric EQ filters
Up 10 per each input and output channel
Parametric EQ filter types
Bell, high/low shelf, high/low pass, notch, all pass
Crossover filter slopes
6, 12, 24 and 48 dB per octave
Crossover filter types
Bessel, Butterworth and Linkwitz-Riley
DYNAMICS PROCESSING
True RMS compressors
1 per each input and output channel
Compressor threshold
-48 to +12 dBu
Compressor attack, hold and release times
1 ms to 10 s
Compressor makeup gain
1 per output channel (end of the signal chain)
Zero-attack peak limiters
1 per output channel (end of the signal chain)
Limiter threshold
-48 to +12 dBu peak
CONNECTORS
Inputs
3-pin female XLR
Outputs
3-pin male XLR
Power
3-pin IEC
USB
USB type B female
Ethernet
RJ45
GENERAL INFORMATION
Mains
100 - 240 V AC, 50-60Hz~
Consumption
< 30 wattss
Dimensions (h x w x d)
44 mm x 482 mm x 185 mm
Weight
2.3 kg
Weight (shipping)
4.2 kg
Fuse
T 2 amp T
TK-100
4-Ch high powered D class amplifier
OHM's collaboration with MC² Audio has resulted in four new amplifiers being added to the current product list. The TK Series is a range of lightweight, high-power switch mode amplifiers designed to the highest standards of reliability and sound quality. Developed for the touring market, TK Series gives reliable, sonic quality of benchmark amplifiers, without the physical weight and are available in two or four channel models.
The switch mode power supply is capable of delivering high peaks without any perceptible bass ‘sag’ at very low distortion and is kept within its safe operating area by the new, sophisticated ‘intelligent’ limiter. The TK-25, TK-45 and TK-475 feature proprietary current driven output stages for ultra-high definition sound, delivered over the entire audio bandwidth. The TK-100 is a Class D amplifier designed to meet the demands for higher power with increased efficiency whilst still maintaining the sonic qualities and unsurpassed reliability.
Product Features:
- Light-weight ideal for install or touring
- Excellent Sonic Performance
- Switch mode power supply
- UK manufactured
TK-100 Amplifiers Information:
The most powerful four channel amplfier OHM has ever provided, the TK-100 has been designed to meet demands for higher power and increased efficiency, whilst still maintaining the renowned sonic qualities and unsurpassed reliability associated with all our amplifiers. Proprietary class-D technology with a dual feedback loop system gives exceptional transient response and a resonant switch mode power supply with a large reservoir gives extremely high peak power without any "bass sag".
Newly designed limiters, linked to the output current monitors and power supply, keep mains input and output currents within a safe operating area at all times, whilst maintaining transparent sonic performance.
Running cool in even the most difficult conditions, the TK-100 can deliver over 2500W into 4 ohms with all channels driven, and a massive 2 x 7400W bridged (4?). with outstanding distortion and noise figures right up to maximum output.
Output Power per channel [Crest Factor = 4.8] (Watts)
8 Ohms / 1400
4 Ohms / 2800
2 Ohms / 3700
Output Power per channel bridged [Crest Factor = 4.8] (Watts)
8 Ohms / 5300
4 Ohms / 7400
THD+N, 4 Ohms (%)
@1kHz, 1dB below max output power < 0.008
@20Hz - 20kHz, 1dB below max output power < 0.15
Gain Options (dB)
26 / 32 / 36
Sensitivity Options for max power (dBu)
16.0/ 10.0 / 6.0
Sensitivity Options for max power (Volts)
4.9 / 2.5 / 1.5
Frequency Response, +0/0.3dB (Hz)
20 – 20000
Input Impedance – Active Balanced (Ohms)
20k
Input CMRR (dB)
> 60
SNR (dB)
105
Damping Factor, 1kHz, 8 ohms
> 400
Signal Limiters Present
Yes
Protection Present – Short Circuit / DC Output / Temperature
Yes
Mains In-rush Control Present
Yes
Output Power per channel, 8 Ohms (Watts)
Sine Wave @ 1kHz / 1150
Continuous music [Crest Factor of 2.8 or 9dB] / 1300
Continuous music [Crest Factor of 4.8 or 14dB] / 1400
Continuous music [Crest Factor of 7.8 or 18dB] / 1480
Output Power per channel, 4 Ohms (Watts)
Sine Wave @ 1kHz / 2250
Continuous music [Crest Factor of 2.8 or 9dB] / 2600
Continuous music [Crest Factor of 4.8 or 14dB] / 2800
Continuous music [Crest Factor of 7.8 or 18dB] / 2900
Output Power per channel, 2 Ohms (Watts)
Sine Wave @ 1kHz / 3200
Continuous music [Crest Factor of 2.8 or 9dB] / 3600
Continuous music [Crest Factor of 4.8 or 14dB] / 3700
Continuous music [Crest Factor of 7.8 or 18dB] / 3700
Power Consumption, Nominal @ 240V, 4 Ohms (A)
7.0
Power Consumption, Nominal @ 120V, 4 Ohms (A)
14.0
Dimensions H x W x D (mm) (Amplifier)
88 x 482 x 428
Dimensions H x W x D (mm) (Shipping)
230 x 580 x 560
Weight (kg)
11.8
Shipping Weight (kg)
13.8 (1 per carton)
TK-45
High power 2-Ch concert amplifier
OHM's collaboration with MC² Audio has resulted in four new amplifiers being added to the current product list. The TK Series is a range of lightweight, high-power switch mode amplifiers designed to the highest standards of reliability and sound quality. Developed for the touring market, TK Series gives reliable, sonic quality of benchmark amplifiers, without the physical weight and are available in two or four channel models.
The switch mode power supply is capable of delivering high peaks without any perceptible bass ‘sag’ at very low distortion and is kept within its safe operating area by the new, sophisticated ‘intelligent’ limiter. The TK-25, TK-45 and TK-475 feature proprietary current driven output stages for ultra-high definition sound, delivered over the entire audio bandwidth. The TK-100 is a Class D amplifier designed to meet the demands for higher power with increased efficiency whilst still maintaining the sonic qualities and unsurpassed reliability.
Product Features:
- Light-weight ideal for install or touring
- Excellent Sonic Performance
- Switch mode power supply
- UK manufactured
TK-45 Amplifiers Information:
This lightweight, modified class H amplifier has been designed to the same high standards of reliability and sound quality that our customers have come to expect of all OHM products. As with all TK Series amplifiers, the TK-45 will deliver their rated power over the entire audio bandwidth, and a resonant switchmode power supply with a large reservoir gives extremely high peak power without any “bass sag”. Optical limiters keep mains input and output currents within a safe operating area at all times, whilst maintaining transparent sonic performance.
Power Reduction Circuitry (PRC) controls on the rear panel, linked to the limiter thresholds, allow each channel to be independently set so that different speakers can be safely connected to each channel. Running cool in even the most difficult conditions,the TK-45 can deliver over 2500 W into 4 ohms with both channels driven, and an impressive 8400 W (4?) bridged with outstanding distortion and noise figures right up to maximum output. The amplifier, of course, includes full DC, VHF, thermal and short circuit protection to ensure continuous trouble-free service.
Output Power per channel [Crest Factor = 4.8] (Watts)
8 Ohms / 1250
4 Ohms / 2500
2 Ohms / 4200
Output Power per channel bridged [Crest Factor = 4.8] (Watts)
8 Ohms / 5000
4 Ohms / 8400
THD+N, 4 Ohms (%)
@1kHz, 1dB below max output power < 0.015
@20Hz - 20kHz, 1dB below max output power < 0.05
Gain Options (dB)
26 / 32 / 36
Sensitivity Options for max power (dBu)
15.7 / 9.7 / 5.7
Sensitivity Options for max power (Volts)
4.7 / 2.4 / 1.5
Frequency Response, +0/0.3dB (Hz)
20 – 20000
Input Impedance – Active Balanced (Ohms)
20k
Input CMRR (dB)
> 60
SNR (dB)
106
Damping Factor, 1kHz, 8 ohms
> 400
Signal Limiters Present
Yes
Protection Present – Short Circuit / DC Output / Temperature
Yes
Mains In-rush Control Present
Yes
Output Power per channel, 8 Ohms (Watts)
Sine Wave @ 1kHz / 1100
Continuous music [Crest Factor of 2.8 or 9dB] / 1200
Continuous music [Crest Factor of 4.8 or 14dB] / 1250
Continuous music [Crest Factor of 7.8 or 18dB] / 1350
Output Power per channel, 4 Ohms (Watts)
Sine Wave @ 1kHz / 2050
Continuous music [Crest Factor of 2.8 or 9dB] / 2400
Continuous music [Crest Factor of 4.8 or 14dB] / 2500
Continuous music [Crest Factor of 7.8 or 18dB] / 2700
Output Power per channel, 2 Ohms (Watts)
Sine Wave @ 1kHz / 3300
Continuous music [Crest Factor of 2.8 or 9dB] / 4100
Continuous music [Crest Factor of 4.8 or 14dB] / 4200
Continuous music [Crest Factor of 7.8 or 18dB] / 4300
Power Consumption, Nominal @ 240V, 4 Ohms (A)
4.5
Power Consumption, Nominal @ 120V, 4 Ohms (A)
9.0
Dimensions H x W x D (mm) (Amplifier)
88 x 482 x 428
Dimensions H x W x D (mm) (Shipping)
230 x 580 x 560
Weight (kg)
11.4
Shipping Weight (kg)
13.4 (1 per carton)
Eris Subwoofer
Dual 18” 4 ohm subwoofer cabinet
Eris is a wide bandwidth, ultra-high power low frequency subwoofer.
Designed with total integration into EOS line array systems, this cabinet is an easy way to extend the frequency response of your system.
The unique symmetrical design allows rotation of each subwoofer for both front facing or cardioid arrangements.
With a usable frequency response of 25 Hz to 200 Hz (-10 dB) and a peak SPL of 141 dB this unit is a capable partner for EOS and can deliver the low frequency output at levels sound engineers expect.
Product Features:
- Front and rear mounted input sockets for easy cardioid setups
- Complete integration for EOS mounting hardware
- Wide bandwidth frequency range
- Stacking cups for ground setups
Design
2 x 18” Subwoofer, Progressive Loaded Reflex Subwoofer.
Impedence
4 Ohm, Minimum 3.3 @ 125 Hz
Power Handling (AES)
1700 Watts (continuous)
Max. Power Handling (AES)
3400 Watts (program)
6800 Watts (peak 10 ms)
Sensitivity 2.83V / 1m
103 dB
Max. SPL
135 dB cont
141 dB peak
Frequency Response (±3dB)
29 Hz - 170 Hz
Frequency Response (-10dB)
25 Hz - 200 Hz
Dispersion
OMNI
SYSTEM OPERATION
Recommended Amplification
1700 - 3500 Watts
System Controller
Ohm DSP Solutions
Speaker Cables
Min - 2 x 4 mm2
Preferred - 2 x 6 mm2
PRODUCT FEATURES
Components
2 x 18” Low Frequency Driver
Crossover
Passive - N/A
Active - * LPF - 110 Hz / HPF - 24 Hz
* All presets from the OHM library.
Connectors
2 x Speakon 4 pole Connectors
Dimensions (H x W x D mm)
589.3 x 1156 x 900
Weight (kg)
106
Shipping Weight (kg)
107 (1 cabinets per carton)
Colour
Black
Options
Available in white or RAL colours on request)
Rigging
Foot and cup stacking system, Eris Sub Flying System
HARDWARE
Fitted as Standard
Eris Sub flying hardware, Ergonimic carry handles
Optional
Eris Sub dolly board, Eris Sub flying array frame
Additional Descriptive Data
Birch plywood construction, with durable scratch resistant black textured polyurea paint finish, kick-proof steel grill and internal black foam with Ohm logo.
EOS
Dual 12 inch Line array
The EOS is an active 4-way design with a nominal impedance of 8 ohms for High, Mid and the Low frequency sections.
Featuring 2 x 12” Neodymium woofers in a tuned enclosure and 4 x 6.5”neodymium mid-range drivers combined with 2 x 6.5” coaxial planar wave guides.
This cabinet gives a usable frequency response of 46 Hz to 21.2 kHz (-10 dB) and an SPL of 147 dB per cabinet. An exposed phase plug design provides a smooth linear response and a coverage free of lobes over the entire frequency range. The waveguide generates a symmetrical horizontal dispersion of 100° x 10° vertical.
Made of high-grade Baltic birch plywood coated in tough polyurea ensures mechanical and acoustical integrity. A fully integrated 4-point rigging system designed with various angles of up to 10? per cabinet, which ensure a perfect acoustic coupling between multiple cabinets forming an array.
Product Features:
- Long throw, full range line array component
- Large format touring grade cabinet
- Tough polyurea coating
- Dual layer thermal relief driver technology
- Phase-plug controlled LF driver with Integrated HF waveguide
- Advanced active dispersion gives 100° x 10° coverage
- Unique port design gives excellent dynamics without side-lobing
- Easy ground-stacking of up to 6 cabinets per frame on ERIS Subwoofer
- Fly up to 24 cabinets per frame.
- Designed 8 Ohm impedance allows it to be powered in 3s from a 4 channel amplifier
Manchester - England
Version 2.0 09/02/2018
Design
Full Range 4 way Linearray module with
phase plug controlled coupling waveguide
incorporating all sources, Coaxial mid-high
Planar wave sound source internally
fi
ltered
Impedance
4 x 8 Ohm, Minimum 6 ohms @ 240Hz LF1&2 /
6.4 ohms @ 670Hz LMF / 6.7 ohms @ 1.56 kHz
HMF-HF
Power Handling (AES)
400 W LF-1 / 400W LF-2 / 800W LMF / 320W
HMF-HF(continuous)
Max. Power Handling (AES)
800 W LF-1 / 800W LF-2 / 1600W LMF / 640W
HMF-HF(program)
1600 W LF-1 / 1600W LF-2 / 3200W LMF /
2000W HMF-HF (peak 10 ms)
Sensitivity 2.83V / 1m
103 dB LF / 104 dB LMF / 116 dB HMF-HF
Max. SPL
132 dB cont. 138 dB peak LF / 133 dB cont. 139
dB peak LMF / 141dB cont. 147dB peak HMF-
HF
Frequency Response (±3 dB)
57 Hz – 21.2 kHz
Usable Frequency Range (-10 dB)
46 Hz - 21.2 kHz
Dispersion
100° x 10° per cabinet, up to 100°x120° in array
depending on curving
SYSTEM OPERATION
Recommended Ampli
fi
cation
4 x 2000 W @ 4 Ohm for 3 cabinets in parallel
System Controller
Ohm DSP Solutions
Speaker Cables
Min - 4 x 2.5 mm
2
Preferred - 4 x 4 mm
2
PRODUCT FEATURES
Components
2 x 12” Driver on phaseplug coupler Waveguide
4 x 6.5” Driver on phaseplug coupler Waveguide
2 x 6.5” coaxial planar wave source on
phaseplug coupler Waveguide
Crossover
Passive - 6.3 kHz internal on coaxial planar
wave source with dispersion control phase
response
Active - *
LPF : - Hz HMF / 1130 Hz LMF
220 Hz LF
HPF : 670 Hz HMF / 250 Hz LMF
55 Hz LF
Connectors
2 x 8 pole Speakon Connectors
Dimensions (H x W x D mm)
370 x 1156 x 500
Weight (kg)
89
Shipping Weight (kg)
93 (1 cabinet per carton)
Colour
Black
Options
Available in white or RAL colours on request
Rigging
2 x Flying Hardware sides for hanging or ground
stacking
HARDWARE
Fitted as Standard
EOS Flying Hardware
Optional
EOS Flying / Ground stacking Array Frame
Additional Descriptive Data
Birch plywood construction, with durable
scratch resistant black polyurea paint
fi
nish
with powder coated steel grill.
Recommended
fi
lter settings are available on
the website ohm.co.uk/downloads
* All presets from the OHM library.
Opinii (0)
Spune-ţi opinia
Numele tău:Opinia ta: Notă: Codul HTML este citit ca şi text!
Nota: Rău Bun
Introduceţi codul din imagine:
