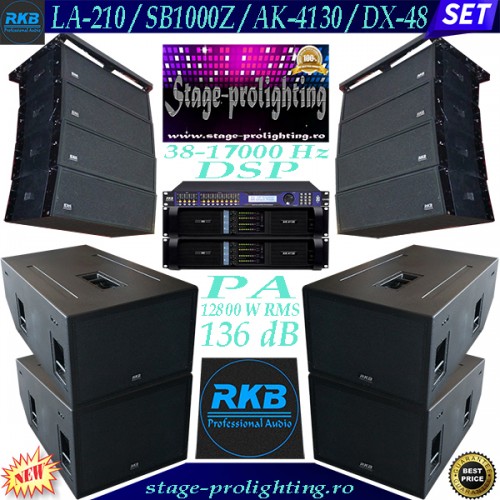

RKB LA-210-SB1000Z-AK-4130-DX48 SET

RKB LA-210-SB1000Z-AK-4130-DX48 SET se compune din:

Nr crt	Produs	Nr Bucati
1	LA-210 , linearray module	8
2	SB1000Z, subwoofer 2 x 18”	4
3	AK-4130, amplificator 4 canale x 2500 W	2
4	DX-48, speaker management processor cu DSP	1
5	Set complet cabluri speakon 4NL	1
6	Bumpers (sistem de suspendare pe schela)	2

Sistemul are nu mai putin de 12800 W RMS, la 136 dB, pasiv, line-array, fiind foarte bine echilibrat in toata banda de frecvente. Poate fi adus si livrat in 8-10 zile cu plata integral anticipat. Plata dvs va fi garantata cu Bilet la Ordin pana la livrarea integrala.

Sistemul de sonorizare poate fi folosit atat outdoor, cat si indoor. Pentru Sali nu prea mari, jumatate din sistem este suficienta pentru un eveniment cu pana la 400-500 de persoane. Sistemul poate fi oricand upgradabil si are fiabilitate foarte buna.

Garantia sistemului este de 2 ani, import extra-comunitar.

Detalii tehnice produse

SB1000Z 2x18” inch subwoofer subwoofer  (clone foarte reusite EAW). Subwooferele au un bas profund, coborand in banda de frecvente pana la 38 Hz, ceea ce le califica in cursa subwooferelor  printre cele mai bine vandute produse. Solid, robust, excelent. Fiind vorba de un bas dublu de 18”, greutatea este pe masura: 86 kg.



• Specifications:

Components	2x18" subwoofer
Frequency Response	38Hz-150Hz( ± 3dB)
Sensitivity(1W/1M)	100dB
Max SPL	134dB
Rated Power(RMS)	1800W
Peak Power	3600 W
Impedance	4 ohm
Connectors	2xNL4 Speakon
Enclosure Material	High-strength Plywood
Cabinet Finish	Germany Water Paint
Protective Grill	Black Perforated Steel with Acoustic Fiber Inside
Dimensions	757*1072*538mm
Net Weight	85.5KG



Model: LA-210 double 10" line array speakers

Features:

*LA-210 Line Array speaker is applied with a horn-loaded titanium-diaphragm compression driver, and dual 10 inch high-performance mid-low frequency drivers. *The unique linear design of the horn, allows the treble output sound pressure level much higher. *Elegant wooden speaker appearance, light weight, and high power output are the main characteristic of LA-210 *With the environment-protected Germany water paint, the whole speaker cabinet is prevented from scratched. *Below the high-strength metal grille, there is high-transmission acoustic foam, to keep it away from dust and rain. *Suitable for small live shows, outdoor reinforcement, small auditoriums.

Applications:

*Theaters reinforcement/ Auditoriums reinforcement *Outdoor stadiums sound system *Music halls sound system *Conference center speaker system *Touring sound system

Specifications:



Model	LA-210
Components	HF: 2x1.73" (Neo); LF: 2x10"(Fe)
Frequency Response	60Hz - 17kHz(±3dB)
Sensitivity(1W/1M)	102dB
Maximum Peak SPL	136dB
Rated Power(RMS)	700W
Peak Power(PEAK)	1400W
Impedance(Ohm)	16 Ohm
Crossover	1.6 KHz
Dispersion Angle(-6dB)	90H x 0-60V
Connectors	2xNL4 Speakon
Riggings	Standard Rigging Attached
Enclosure Material	High-strength Plywood
Cabinet Finish	Germany Water Paint
Protective Grille	Black Perforated Steel with Acoustic Cloth inside
Dimensions (mm)	295*875*435
Net. W.	43 kg



Model: DX-48 4-in 8-out audio processor

RKB PROCESSOR - DX-48



 Each input has 5 parametric filters and each output has 7 parametric filters. Both input and output filters can be selected to be Bell or Shelving filters. On the outputs a Hp and a Lp filters up to 24dB/Oct. Output Limiter is working on the RMS value of the limiter's input. The Limiter's THR can range up to -30dBu. Each input and output channels have delays up to 850ms, with steps of 22usec.Linking functions between inputs and linking functions between outputs are available. A function is allowing to have ramps closing the output level on parameter changes, when the unit is used as installation unit; this function can be excluded when the unit is used live and it is necessary to perform small changes to the set parameter...on the fly. The Pc SW for the remote control is allowing to connect in net up to 32 units.





Specifications of  DDX-48 4-in 8-out audio processor



Inputs: XLR balanced
*Outputs: XLR balanced, TCPIP connection
*Minimum Load: 150ohm
*User memories: 24
*Recall memories: 24
*VU metering: 7 led for Inputs [-20dBu up to +15dBu; Clip]
7 led for Outputs [-20dBu up to +15dBu; Clip; Limit]
*Output Leds can be used for displaying the Output
level OR the Limiter activity
*THD+N: 0.001% at 1kHz 0dBu
*S/N: >110dB
*Frequency Response: 20Hz – 20kHz ;
-0.5dBu at 20Hz and 20kHz
*A/D and D/A Resolution: 24bits
*Process Resolution: 24x32 bit for filtering process; 96 bits resolution on intermediate computation results
*Display: Graphic 2x20 characters
*Size: 19"X(1U)
*Process:
up to 24dBu/Oct HP/LP, +-15dB gain Bell and
Shelving filters, RMS compressor/limiter
[Attack time from 5ms up to 200ms (1ms resolution up
to 20ms, then 10ms resolution up to 100ms and 20ms
resolution up to 200ms), Release time from 0.1 sec up
to 3 sec (0.1sec resolution)], delay on Inputs and

Outputs up to 848.998ms with 21us increment steps.

Limiters:
*Threshold: from 20dBu up to -10dBu
*Attack time: Attack time from 5ms up to 200ms (1ms resolution upto 20ms, then 10ms resolution up to 100ms and 20ms resolution up to 200ms)
*Release time: Release time from 0.1 sec up to 3 sec (0.1sec resolution)
*High pass and Low Pass Filters
*Frequency(HPF): from 1st order (Butterworth -6dB/Oct) up to 4th Order(Butterworth, Linkwitz or Bessel -24dB/Oct)
*Frequency(LPF): from 1st order (Butterworth -6dB/Oct) up to 4th Order(Butterworth, Linkwitz or Bessel -24dB/Oct)
*Filter's setting step:1/24th of octave
Delay & Gain:
Maximum Delay: 848.998ms by 21us increment/decrement step, oneach Input and Output channel
Spdif input gain(Digital):
0dBu on RCA connector
Parametric Equalization: 5 filters on each input assignable as Bell or Shelving
7 filters on each output assignable as Bell or Shelving
Filters:symmetrical Bell or High/Low Shelving up to second order
Filter gain:for Bell and Shelving the gain is ranging from -15dBu upto +15dBu by 0.5dBu resolution steps
Centre frequency:
selectable with a 1/24th of octave resolution steps from20Hz up to 20kHz
Filter Q/BW:Q from 0.05 up to 3 by 0.05 resolution steps
