Descriere
PA low cost Configuration 1 este un sistem de amplificare, solutie completa, configurat astfel incat sa poata fi obtinut cu ajutorul lui un bun randament calitativ pentru un pret cat mai scazut. avand totodata multiple posibilitati, functie de aplicatii. Dedicat in special pentru spatii relativ restranse, (gen: sala de repetitii, pub, bar, lounge, terase, etc), sistemul beneficiaza atat de calitatile individuale ale componentelor, cat si de cateva particularitati menite sa va convinga ca faceti o alegere buna:
- mixer Soundcraft Signature 12, cu 12 canale, procesor efecte incorporat Lexicon, dbx compresor/limitator, EQ;
- topurile pasive theBox in banda de frecvente 90-19000 Hz, cu difuzor de 10" si driver de 1", au un swich ptr -3 dB, care le permite cuplarea cu subwoofere mai puternice, capatand astfel 200W RMS fiecare;
- subwooferele pasive Mackie S518S, 1x 18", 450 / 1800 Watt continous/ peak, Frequency Range 37 Hz - 220 Hz, vor avea in sarcina joasele fara vreo crossoverare auxiliara;
- amplificatorul QSC GX 5, de cea mai buna calitate va furniza puterea de 2x 700W/4 Ohm, respectiv 2x 500W/8 Ohm si va lucra in aceasta configuratie la 6 Ohm, deci undeva la 2 x 650 W.

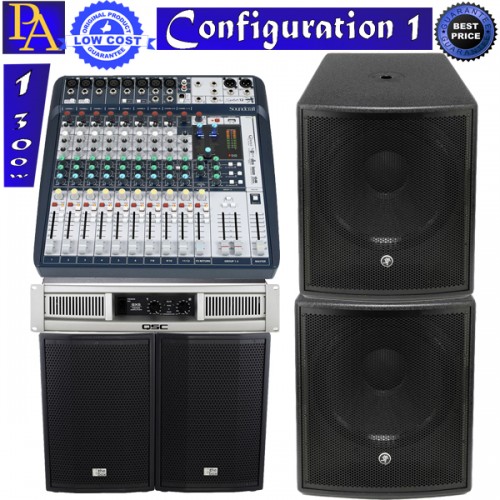

Sistemul arata exact ca in imagine, este importat din Germania si are 3 ani garantie individuala a produselor care il compun.
Detalii tehnice:
Passive Full-Range Speakers the Box 10"+1"
- Equipped with: 10" + compression driver
- Power capacity: 200 W RMS, 800 W Peak
- Nominal dispersion: 90° x 60°
- Impedance: 4 Ohm
- Maximum level: 120 dB
- Transmission range: 90 - 19,000 Hz
- Speakon Connector
- Flange mount
- Dimensions: (W x D x H): 320 x 265 x 460 mm
- Weight: 10.5 kg
- Surface: black structured lacquer
- Price for two
Soundcraft Signature 12
12 Channel Mixer
- 8x Mono inputs
- 3x Stereo input
- 3 Band EQ with 1 band of swept mids
- 2x Microphone channels with built-in dbx limiter (compressor)
- 3x Aux output
- Solo/Mute switch
- Built-in Lexicon effects engine
- Peak LED per channel
- Integrated power supply
- 60 mm Fader
- Two channel USB Interface (incl. Ableton Live 9 Lite software)
- Dimensions: 113 x 380 x 388 mm
- Weight: 5.66 kg
Mackie S518S, passive 18" Subwoofer, 1x 18", 450 / 1800 Watt continous/ peak, Frequency Range 37 Hz - 220 Hz, 8 Ohms, 98,3 dB SPL, Low Pass Filter 120 Hz, 2x 6,3 mm Jack oder Speakoninput, 36 mm Pole Mount, Dimensions HxBxT 607 x 516 x 541 mm, Weight 32 kg
QSC GX 5
Power Amplifier
- 2x 700W/4 Ohm
- 2x 500W/8 Ohm
- Inputs: XLR, RCA and 6.3 mm stereo jack
- Outputs: Speakon combo connectors for jack, 2-pin and 4-pin
- Speakon connector + screw terminals
- Weight: 12 kg
- Model: 19"/2HE
