Baad Boy Vertical -array PA SET

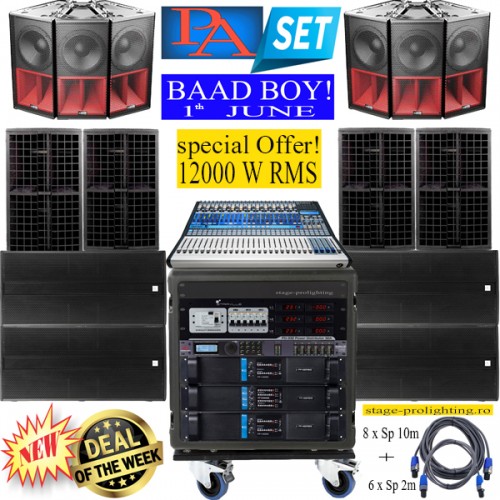

Baad Boy Vertical -array PA SET este un sistem PA gata configurat, la un pret imbatabil pentru performantele sale, reprezentand oferta speciala stage-prolighting de ziua copilului, deoarece acest sistem este exact precum un bebelus care poate creste oricand sub forma configuratiei de speakere, fara a mai fi nevoie de amplificatoare suplimentare, rack-ul de puteri avand rezerva de inca 20000W, astfel incat totul se rezuma la ce tip de configuratie va doriti avand la dispozitie peste 30000 W RMS. In configuratia propusa de noi, cu sistemul din imagine se pot obtine 12000W RMS, 24000W in program, sistemul urcand fara probleme la pragul de 136 dB in toata banda de frecvente 28Hz-20000Hz. Procesorul de sistem dbx va prelua suma din mixerul digital Presonus, distribuind semnalul intre cele trei grupe cu crossoverarile aferente: 4 x 2 x 18" pe grupa sub low desservita de amp-ul FP 14000, grupa sub 4 x 2 x 12", deservita de amp-ul FP10000Q, respectiv cele 6 vertical-array speakere pentru medii-inalte deservite de al doilea amp FP 14000. Echilibrarea delay se face tot din dbx, pe cate doua canale in paralel. Datorita puterii consumate, distribuitorul Stairville este absolut necesar. Combinatia suburilor 2 x 18" cu 2 x 12" nu este intamplatoare. Folosind preseturile corespunzatoare din dbx, serviciul oferit de medii-joase se va simti imediat cu un plus de consistenta, rezultatul fiind un sunet excelent. Array-urile trebuie inclinate la suspendare aprox 10-15 grd (functie de aria de acoperire), astfel incat randamentul acestora sa fie maxim. Avand in vedere surplusul de putere prezent, limitarile sunt obligatorii, fiind facute in cascada, atat din mixerul digital, cat si din dbx, astfel incat speakerele vor fi asigurate contra agresiunilor dinamice, iar fiabilitatea intregului sistem mult sporita, evitandu-se totodata orice distorsiuni nedorite. Reglajul compresiei se face in functie de natura salii, dar acest sistem poate fi folosit cu succes si outdoor. Beneficiarii vor primi din partea stage-prolighting un instructaj complet privind folosinta acestui sistem de sonorizare pentru orice situatie. Sistemul dvs se compune din:

Component	Nr buc	Descriere de baza
the box pro TP218/1600 MkIII	4	Subwoofer with level stability High-quality workmanship for commercial use Equipped with: 2 x 18" - Bass reflex Power rating: 1600 W AES (3200 W peak) SPL: 100 dB, 136 dB max. Impedance: 4 Ohm
the box pro Achat 212H-SUB	4	high-performance horn-loaded subwoofer for touring applications and permanent installations, 2x 12" woofers  (4" voice coil), 800W/8 Ohms RMS (3200W peak), frequency response: 28-90Hz, 139dB peak SPL. Dimensions: 55 x 80 x 120cm (WxHxD). Weight: 86kg. Colour: Black (PU paint), Engineered in Germany
V-HLA12 12"	6	2-way Passive Line Array speaker
Powave FP AMP Rack	1	Rack amplificatoare descris separat
Presonus StudioLive 24.4.2 Ai	1	24-channel digital mixer with 40-in/26-out FireWire s800 24 Bit/48 kHz audiointerface
the sssnake SLL	set	(set 8 x 10m + 6 x 2m speakon-speakon)
Thon Wheel Board	1	sistem transport Rack amps

Powave FP AMP Rack 38000W RMS SET se compune din:

Component	Buc	Specificatii de baza
Powave FP 14000	2	Amplificator (clona LabGruppen) 14000W RMS
Powave FP 10000Q	1	Amplificator (clona LabGruppen) 4x2500W RMS
Stairville PD- 332	1	Power distributor from 380 to 220V
DBX Driverack 260	1	Speaker management system, comp-limitator, EQ
Pach XLR cables+Roto Rack	8	Pach XLR-XLR cables 0,5m
SKB R12U Roto Rack	1	Hard case
Thon Wheel Board	1	Transport plate on roles

Dintre toate clonele fabricate in China ale celebrelor amplificatoare LabGruppen (originale made in Sweden), aceste doua modele FP 10000Q si FP 14000 sunt printre cele mai reusite (ca performante de ansamblu -studiind feed-back-urile cumparatorilor din diferite forumuri de specialitate), dar stage-prolighting nu cunoaste fiabilitatea lor. Garantia oferita de producatorul chinez Poware pentru aceste doua produse este de 1 an, importul facandu-se din China. Power distribuitorul Stairville, precum si dbx procesorul de sistem se importa din Germania, iar la aceste doua produse, precum si case-ul ROTO 12U, garantia este de 3 ani!!! Puterea totala instalata a sistemului este de 38000 W RMS, din care vor fi folositi doar 12000W RMS in aceasta configuratie, acest PA Rack fiind flexibil pentru o multitudine de configuratii ale speakerelor si suburilor, atat pentru sisteme standard, cat si line-array. Pretul oferit este pentru intreg setul prezentat, fiind mai mult decat confortabil pentru puterea instalata a sistemului.

Detalii Tehnice:

the box pro TP218/1600 MkIII

Passive Bass Speaker

• Subwoofer with level stability
• High-quality workmanship for commercial use
• Equipped with: 2 x 18" - Bass reflex
• Power rating: 1600 W AES (3200 W peak)
• SPL: 100 dB, 136 dB max.
• Impedance: 4 Ohm
• Frequency range: 34 Hz - 150 Hz
• Without low pass filter
• Input and output: SPK 4-pin (Pin1)
• Optional: 100 mm blue wheels (not included)
• 12 Handles
• Weight: 82 kg (net), 90.0 kg (shipping)
• Dimensions (H x W x D): 1200 x 550 x 680 mm
• Housing material: Birch plywood with black anti-slip lacquer

the box pro Achat 212H-SUB

he box pro Achat 212H-SUB - high-performance horn-loaded subwoofer for touring applications and permanent installations, 2x 12" woofers  (4" voice coil), 800W/8 Ohms RMS (3200W peak), frequency response: 28-90Hz, 139dB peak SPL. Dimensions: 55 x 80 x 120cm (WxHxD). Weight: 86kg. Colour: Black (PU paint), Engineered in Germany

V-HLA12 12" 2-way Passive Line Array speaker

features:
* 12" custom made Beyma LF neodymium driver with 4" voice coil
* 1.4" /1" custom made BMS HF coaxial neodymium driver with 3.5" /1.7" voice coil
* Impressive 135dB/148dB SPL max (LF/HF)
* RMS-LF: 700W, HF/Middle: 80W/150W
* Latest neodymium speaker technology.
More than 148dB SPL max.
* Ultra low distortion (Average H3 distortion: <0.5%) .
* Advanced cooling system, very low power compression.
* 2 way active mode with external signal processing.
* SMART crossover with 15 years experience, adopt
American Benelec XPP audio capacitor to ensure high
precision: air core pure copper inductors without
magnetic saturation: fiber PCB manual air-way soldering to ensure ZERO consumption even under big dynamic.
* Optimized Phase Response and hybrid horn design with DMFTM composite material, directivity -6dB (H° -V° ) : 30° -60° . Innovative T. A. C technology to ensure even coverage and high accurate dispersion angles.
* Usable as a single unit up to large flown Arrays.
* Designed for stacked or flown applications in horizontal or vertical use.
* Integrated rigging system including Quick Lock Pins.
* A wide range of accessories are available.
* V-HLA has a multi purpose cabinet design for horizontal and vertical use.
* Rock solid humidity free birch plywood CNC made cabinet. Touring grade coating with Emery spraying.

Specifications:

Power Capacity (AES) : LF 700W, HF 8ΩW, Mid 150W
program power: LF 1400W, HF 160W, Mid 300W
peak power: LF 2800W, HF 320W, Mid 600W
Impedance: 8Ω
Frequency response (EQ half space -6dB) : 540~20000Hz
Sensitivity (1W/m) : LF 101dB, HF 118dB
Average H2 distortion (100~10, 000Hz) : : <2% at 1W
Average H3 distortion (100~10, 000hz) : : <0.5% at 1W
Directivity (-6dB) : 30°H-60°V
Maximum calculated SPL/1M: Persist LF 129dB, HF 137dB, Mid 140dB
Program LF 132dB, HF 140dB, Mid 143dB
Peak LF 135dB, HF 143dB, Mid 148dB
drivers: Beyma Neodymium driver (4" VC) BMS Neodymium driver (H-1.4" /1" EXIT, M-3.5" VC/1.7" VC)
Product consistency: /- 1.5dB from 200 to 10, 000Hz
Cabine: CNC made, suitable for tooring performance, high density Russian birch plywood
Finish: UltraTexTM French coating, Emery spraying
Connectors: NEUTRIK 2-NLT4MP
Optional accessories: Stainless steel shackle, Bolt, Line array cradle_2 boxes, Line array cradle_3 boxes, Vertical array cra
Dimension (W-H-D) : 331-660-437mm

the sssnake SLL (set 8 x 10m + 6 x 2m speakon-speakon)

DBX Driverack 260 digital speaker management system - the same features as DriveRack PA (order code 155975) plus: muting option (no switch noise), RS232 connection with driver software for remote for all functions, delay line (up to 2.7sec), update option, freely configurable input and output routing, assignable output names, zone controller function via RJ-45 connection, feedback eliminator (2x 12 filters), 2 virtual inserts with various effects (e.g. subharmonic synthesizer), RTA display always accessible on front panel and software, 110dB dynamic range.

Stairville PD-332 Power Distributor 32A CEE, Tri-Phase Power Distributor. Professional made with digital, Volt- & Amp-Meter. Power Input: 1x 32A CEE, Power Output: 6x 16A EU socket, 1x 32A CEE socket, Protection circuit breaker on each phase, Additional circuit breaker for residual current Fi 32A 4 pole 0.03A,, Digital Voltage Meter and Amp-Meter for each phase on the front side. Made for 19" rack installations., Dimensions: 482 x 134 x 257 mm (LxHxW), Weight: 8,2 kg

SKB R12U Roto Rack, 19" 12 U plastic rack with internal shockmount on all corners, rack depth 44,70 cm, two recessed handles, 8x Recessed latches, heavy duty black plastic housing, external dimensions: 609 x 569 x 602 mmm, weight 13,24 Kg,

Thon Wheel Board for Thon Live-Stacking Racks, 18mm birch plywood, dimensions (WxDxH): ca. 53 x 57.5 x 14.6 cm, routed for easier stacking, Housing made from Sheet steel, Chrome plated Zinc, fitted with 4 castors (2 Braked and 2 without Brakes), Wheel made from strong polyamid, Blue Rubber wheels, wheel Bearings, Wheels with a maximum load of 450 kg, weight: ca. 7 kg, made in Germany

Presonus StudioLive 24.4.2 Ai, 24-channel digital mixer with 40-in/26-out FireWire s800 24 Bit/48 kHz audiointerface, compatible with Core Audio and ASIO (Mac/Windows), four programmable, 32-bit, stereo DSP effects engines (2x Reverb, 2x Delay) with dedicated aux buses, twelve 31-band graphic EQs (on main and aux outputs), Dual Fat Channel signal processing on all 24 input channels and all buses, with 4-band parametric EQ, compressor, sophisticated gate with Key Listen and Key Filter (with side chain), limiter with variable threshold, and more lets you A/B two complete Fat Channel settings—like having two different Fat Channel settings at once on every channel and bus! Active Integration software suite includes Capture 2 with Virtual Soundcheck mode and remote StudioLive scene store/recall, Studio One Artist 2 with native Fat Channel plug-in and StudioLive scene compatibility, and Virtual StudioLive-AI with Smaart System Check Wizards and Spectra analysis on every channel and bus. StudioLive Remote-AI iPad control app and QMix-AI iPhone/iPod touch aux mix app (free on the Apple App Store) directly control the StudioLive AI mixer over your wireless network - requires optional WiFi-Router, 16 dedicated mix outputs for easy configuration: 4 subgroups, 10 analog auxiliary buses, and stereo main mix with mono sum. 24 channel discrete XMAX mic preamps, line inputs, analog inserts, and direct outputs for flexible connectivity. High-end Burr-Brown DA/AD converters with 118 dB dynamic range. Dedicated Ethernet port and USB 2.0 port for included Wi-Fi LAN adapter for wired or wireless connection to a wireless router. Optional Thunderbolt, Dante, and AVB connectivity. Dimensions: 63,98 x 54,13 x 17,82 cm (WxDxH), weight: 13,60 kg
