Descriere

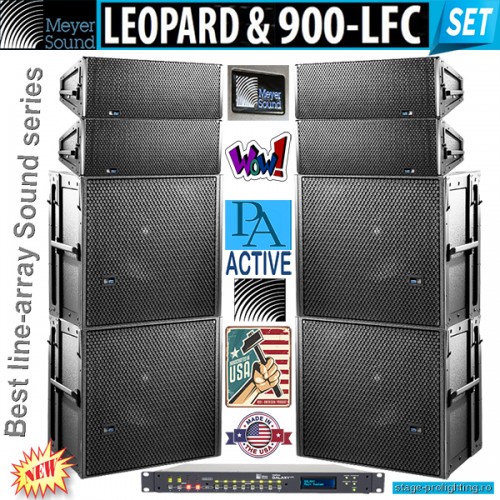

Meyer Sound Leopard & 900-LFC- SET continua seria propunerilor noastre in materie de sisteme de sunet exceptionale. Sistemul prezentat doar ca advertising, compus din 2 module line-array active Meyer Sound Leopard, doua subwoofere line-array Meyer Sound 900-LFC si (optional) un network controller management system Meyer Sound Galaxy 408 (sau Callisto) este unul dintre cele mai performante in acest sens. Pretul nu poate fi comunicat public (este politica firmei Meyer Sound) si se poate comunica numai in relatia directa cu clientul, deci sunand la magazin pentru deschiderea unei comenzi. Produsele comandate pot fi aduse in aproximativ doua saptamani, au garantie 3 ani, iar plata trebuie facuta integral in avans. Importul se face din SUA.
Detalii tehnice si prezentare produse:
GALAXY 408
The GALAXY 408 is a 1RU device that includes:
■
4 analog/AES3 and 8 AVB inputs
■
8 analog and 16 AVB outputs
■
Digital matrix processor
Designed as the perfect complement to Meyer Sound’s M Series™ and LEO Family arrays,
the Galileo GALAXY includes the following features:
■
AVB I/O controller
■
Expanded delay integration for aligning Meyer Sound loudspeaker products
■
Delay matrix
■
Atmospheric correction filters
■
Simultaneous low- and high-pass filters
The Galileo GALAXY offers an extensive equalization architecture:
■
U-Shaping EQ (inputs and outputs): 5 bands with adjustable slopes, widths, and gain.
■
5-band complementary phase parametric filtering on inputs
■
10-band complementary phase parametric filtering on outputs
The Galileo GALAXY features full
digital operation with fixed la
tency across all output channels
regardless of applied processing. To provide the highest level of audio precision and dynamic
range while minimizing latency, audio processing in the GALAXY utilizes high precision vari-
able length integers with 64-bit resolution.
GALILEO GALAXY USER GUIDE
APPENDIX B: GALAXY SPECIFICATIONS
INPUTS
Input Section
8 inputs
Analog, AES3, AVB (via network ports)
Connectors
Gold-plated XLR-female
Analog and AES3
Maximum Peak SPL
+26 dBU (maximum range selected, 0 dB input gain)
Metering
4-segment LED ladder meters on each input
OUTPUTS
Output Section
8 analog outputs for GALAXY 408,16 analog outputs for GALAXY 816
16 AES3 outputs for GALAXY 816-AES3 plus 8 mirrored analog outputs
Connectors
Gold-plated XLR-male
Maximum Output Level
+26 dBU into 600
W
or greater (maximum range selected)
Metering
Variable intensity, bi-color signal presence/clip LED on each output
MATRIX
Summing Matrix
Full 8 x 16 summing matrix; any input summed with any input and routed
to any output
Delay Matrix
Sparse 8x16 tap Delay Matrix: 500 ms to
tal delay at each cross point (non
fading)
PROCESSING
Digital Conversion
24-bit resolution, 96 kHz sample rate
Internal Processing
Up to 64-bit, 96 kHz
Processor
FPGA based Audio Processing
Input Processing
Gain, delay, parametric
EQ, U-Shaping equalization
Output Processing
Gain, delay, polarity re
versal, U-Shaping equaliza
tion, 10-band parametric
filtering, delay integration, atmospheric correction and gain factor, simul-
taneous low- and high-pass filters
NETWORK/CONTROL
Network
Two RJ-45 ports for networked audio an
d client control connection from a
Mac or Windows-based computer
Software
Full bidirectional communication wi
th Meyer Sound’s Compass control
software within a client-server architecture
SIM
Two SIM bus ports to link 816 GALAXY units
One SIM bus port to link the GALA
XY 408 to the SIM 3 audio analyzer
AC POWER
Connector
PowerCon 20
Operating Voltage Range
100–240 VAC, 50/60 Hz
Current Draw
GALAXY 408
115 VAC: 0.35 A rms
230 VAC: 0.17 A rms
100 VAC: 0.40 A rms
GALAXY 816
115 VAC: 0.48 A rms
230 VAC: 0.24 A rms
100 VAC: 0.56 A rms
GALAXY 816-AES3
115 VAC: 0.43 A rms
230 VAC: 0.22 A rms
100 VAC: 0.50 A rms
PHYSICAL
Dimensions
GALAXY 816 and GALAXY 816-AES3 (2-RU rack mount)
W
19.00 in x
H
3.48 in H x
D
16.14 in (483 mm x 88 mm x 410 mm)
GALAXY 408 (1-RU rack mount)
W
19.00 in x
H
1.74 in x
D
16.14 in (483 mm x 44 mm x 410 mm)
Weight
GALAXY 408
13.2 lb (6.0 kg)
DATASHEET
LF
900-LFC
Compact Low-Frequency Control Element
Compact cabinet with small footprint and extraordinary power-to-size ratio
High peak power output with extremely low distortion
Exceptional linearity, transient reproduction, and low-frequency clarity
Self-powered for simplified setup and increased reliability
Stackable and flyable in regular and cardioid arrays, with tilt and splay options
Integral pole-mount receptacle easily pairs the subwoofer with ULTRA Series loudspeakers
Scalable low-frequency control for touring applications or fixed installations of any size
Clubs, theatres, houses of worship, corporate AV, and theme parks
Low-frequency complement for LEO-M, LYON, and LEOPARD systems
Meyer Sound’s 900-LFC compact low-frequency control element reproduces low frequencies at high, continuous output levels with extremely low distortion. The 900-LFC offers the same sonic linearity as Meyer Sound’s 1100-LFC low-frequency control element in a smaller, lighter cabinet, making it ideal for building scalable systems to suit touring applications or fixed installations of any size.
A newly-designed class D amplifier affords unprecedented efficiency to the 900-LFC, significantly lowering distortion while reducing power consumption and operating temperature.
The onboard amplifier and control circuitry are contained in a single, field-replaceable module.
In addition to pairing with LEOPARD™ systems, the 900-LFC integrates easily with other Meyer
Sound loudspeaker systems, including LEO-M™, LYON™, and ULTRA Series loudspeakers.LEOPARD and 900-LFC can be driven by Meyer Sound’s Galileo Callisto™ 616 array processor, which provides matrix routing, alignment, and processing for array components. To guarantee optimum performance, systems with the 900-LFC
should be designed with Meyer Sound’s MAPP™ software. LEOPARD and 900-LFC loudspeakers work with Meyer Sound’s RMS™ remote monitoring system, which provides comprehensive monitoring of system parameters from a Mac or Windows-based computer.
The 900-LFC is available with or without Meyer Sound’s QuickFlyrigging. When equipped with the optional MRK-900 rigging kit, the 900-LFC’s captive
GuideALinks™ allow it to be flown from the MG-LEOPARD/900 multipurpose grid in LEOPARD arrays without a
transition frame. 900-LFCs can also be flown separately as a subwoofer array with variable splay angles from 0 to 5 degrees. The MG-LEOPARD/900 grid can also be used for groundstacks with uptilt or downtilt.Both versions of the 900-LFC can be transported in stacks with the optional MCF-900 caster frame.MG-LEOPARD/900 Multipurpose Grid
Flies
LEOPARDs, 900-LFCs, and mixed arrays. Also supports LEOPARD and 900-LFC groundstack configurations.
PBF-LEOPARD Pull-Back Frame
Provides pull-back for extreme downtilt of flown LEOPARD and 900-LFC arrays, and allows additional downtilt in groundstacked arrays.
Callisto 616 Array Processor
Drives and aligns Meyer Sound array systems with 6 x 16 matrix process-ing, delay integration, and EQ, using Compass software.
MVP Motor Vee Plate
Attaches to MG-LEOPARD/900
grid and fine tunes horizontal aim of LEOPARD and 900-LFC arrays.
MCF-900 Caster Frame
Safely transports up to two
900-LFCs, making it easy to assemble and disassemble arrays
in blocks of two cabinets
.
MDM-5000 Distribution Module
Integrates routing of audio, power, and RMS to loudspeaker arrays.
features & benefits
solutions
900-lfc accessories
900-lfc specifications
Acoustical
1
Operating Frequency Range
2
31 Hz – 125 Hz
Phase Response
40 Hz – 110 Hz ±30 degrees
Transducer
Low Frequency
One 18-inch dual-coil, long-excursion cone driver
Audio I/O
Connectors
3
XLR 3-pin or 5-pin female input with male loop output
Amplifier
Type
2-channel, open-loop, class D
AC Power
Connectors
powerCON 20 input with loop output
Safety Rated Voltage Range
100–240 V AC, 50–60 Hz
Turn-on/off Points
90 V AC turn-on, no turn-off; internal fuse-protection above 265 V AC
Max. Long-Term Cont. Current
4.9 A rms (115 V AC); 2.5 A rms (230 V AC); 5.2 A rms (100 V AC)
RMS Network
Equipped with 2-conductor, twisted-pair network, reporting
all amplifier operating parameters to host computer
Physical
Dimensions
27.43 in W x 24.43 in H x 24.89 in D (697 mm x 621 mm x 632 mm)
Dimensions w/Rigging
27.47 in W x 24.43 in H x 24.89 in D (698 mm x 621 mm x 632 mm)
Weight
136 lbs (61.7 kg)
Weight w/Rigging
159 lbs (72.1 kg)
Enclosure
Multi-ply hardwood with black textured finish
Protective Grille
Hex-stamped steel with acoustical black mesh
Rigging
Endframes with captive GuideALinks (0 to 5-degree splay angles),
Dimensions shall be 27.43 inches wide x
24.43 inches high x 24.89 inches deep (697 mm x
621 mm x 632 mm). Dimensions with optional rigging
shall be 27.47 inches wide x 24.43 inches high x
24.89 inches deep (698 mm x 621 mm x 632 mm).
Weight shall be 136
lbs
(61.7 kg). Weight with optional
rigging shall be 159 lbs (72.1 kg).
The loudspeaker shall be the Meyer Sound 900-LFC.
DATASHEET
LINE ARRAY
LEOPARD
™
Compact Linear Line Array Loudspeaker
Compact cabinet with small footprint and extraordinary power-to-size ratio
High peak power output with exceptional linearity and transient reproduction, at any output level, with extremely low distortion
Self-powered for simplified setup and increased reliability
Flexible rigging and transport options Integrates easily with Meyer Sound’s LYON,
900-LFC, and 1100-LFC loudspeakers
Small- to medium-sized touring and fixed installations Clubs, theatres, houses of worship, corporate
AV, and theme parks
Downfill, midfill, sidefill, and outfill for LYON; midfill, sidefill, and outfill for LEO-M
The LEOPARD compact linear line array loudspeaker reproduces audio faithfully with tremendous power, superior intelligibility, and extremely low distortion. Rounding out Meyer
Sound’s award-winning LEO
Family of loud-speakers, LEOPARD delivers the same advantages of self-powered design, linear response, and
precise directional control as its bigger siblings LEO-M™ and LYON™.
LEOPARD breaks new ground in loudspeaker array performance, providing exceptional phase coherence and consistent coverage in a light, compact cabinet, making it extremely versatile. Its innovative amplifier, driver, and horn designs ensure that LEOPARD systems reproduce any sound source with linearity over a wide dynamic range, from speech and classical music to rock and EDM. LEOPARD loudspeakers are optimized for
use with minimal processing, yielding excellent performance right out of the box.
LEOPARD is portable and easy to configure. Its low weight and narrow profile make it well-suited for small- to medium-sized touring acts and fixed installations, where scalability and ease of rigging are essential. A newly-designed class D amplifier affords unprecedented efficiency to LEOPARD, significantly lowering distortion while reducing power consumption and operating temperature.
The onboard amplifier and control circuitry are contained in a single, field-replaceable module.
For low-frequency enhancement, LEOPARD pairs with Meyer Sound’s 900-LFC low-frequency control element, which can be flown as part of LEOPARD arrays without transition hardware. The 900-LFC shares with LEOPARD the advantages of excellent power-to-size ratio, improved efficiency, and versatility.
In addition to working as a standalone system, LEOPARD can also be used as a supplemental fill loudspeaker in LEO-M and LYON systems.
LEOPARD systems can be driven by Meyer Sound’s Galileo Callisto™ 616 array processor, which provides matrix routing, alignment, and processing for array components. To guarantee optimum performance, LEOPARD systems should be designed with Meyer Sound’s MAPP™ software. LEOPARD and 900-LFC loudspeakers work with
Meyer Sound’s RMS™ remote monitoring system, which provides comprehensive monitoring of system parameters from a Mac or Windows-based computer.
LEOPARD includes Meyer Sound’s QuickFly rigging with captive GuideALinks™, which allows easy setting of splay angles from 0.5 to 15 degrees.
Rigging options include the MG-LEOPARD/900 multipurpose grid, MCF-LEOPARD caster frame,
PBF-LEOPARD pull-back frame, and MTF-LYON/LEOPARD transition frame.
MG-LEOPARD/900 Multipurpose Grid
Flies
LEOPARDs, 900-LFCs, and mixed arrays. Also supports LEOPARD and 900-LFC groundstack configurations.PBF-LEOPARD Pull-Back Frame Provides pull-back for extreme downtilt of flown LEOPARD and 900-LFC arrays,
and allows additional downtilt in groundstacked arrays. Callisto 616 Array Processor
Drives and aligns Meyer Sound array systems with 6 x 16 matrix process-ing, delay integration, and EQ, using Compass software.
MVP Motor Vee Plate
Attaches to MG-LEOPARD/900
grid and fine tunes horizontal aim of LEOPARD and
900-LFC arrays.
MCF-LEOPARD Caster Frame
Safely transports up to four LEOPARDs, making it easy to assemble and disassemble arrays in blocks of three or four cabinets.
MDM-5000 Distribution Module
Integrates routing of audio, power, and RMS to loudspeaker arrays.
features & benefits solutions
leopard accessories
leopard specifications
Acoustical
1
Operating Frequency Range
2
55 Hz – 18 kHz
Phase Response
92 Hz – 18 kHz ±30 degrees
Transducers
Low Frequency
Two 9-inch long-excursion cone drivers
High Frequency
One 3-inch compression driver coupled to a constant-
directivity horn through a patented REM
manifold
Audio I/O
Connectors
3
XLR 3-pin or 5-pin female input with male loop output
Amplifier
Type
3-channel, open-loop, class D
AC Power
Connectors
powerCON 20 input with loop output
Safety Rated Voltage Range
100–240 V AC, 50–60 Hz
Turn-on/off Points
90 V AC turn-on, no turn-off; internal fuse-protection above 265 V AC
Max. Long-Term Cont. Current
3.0 A rms (115 V AC); 1.5 A rms (230 V AC); 3.4 A rms (100 V AC)
RMS Network
Equipped with 2-conductor, twisted-pair network, reporting
all amplifier operating parameters to host computer
Physical
Dimensions
26.93 inches W x 11.11 inches H x 21.66 inches D
(684 mm x 282 mm x 550 mm)
Weight
75 lbs (34.0 kg)
Enclosure
Multi-ply hardwood with black textured finish
Protective Grille
Hex-stamped steel with acoustical black mesh
Rigging
Endframes with captive GuideALinks (0.5 to
15-degree splay angles),
quick-release pins, and detachable side and rear handles
Load Ratings
MG-LEOPARD/900 multipurpose grid flies 23 LEOPARDs (5:1 safety factor)
or 20 LEOPARDs (7:1 safety factor), with some restrictions
