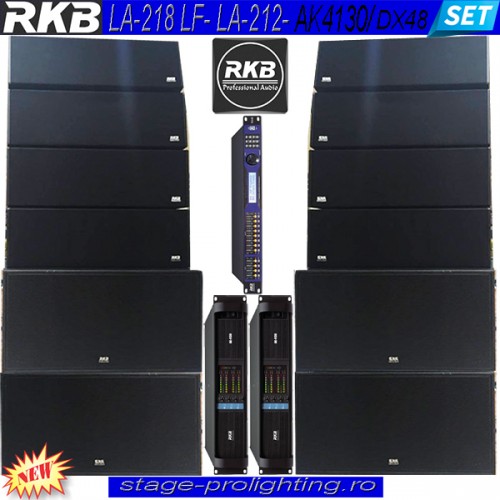

RKB LA-218-LA212-AK4130-DX48 LIVE PA SET este un sistem de sonorizare complet, dedicat aplicatiilor LIVE care presupun forta si se compune din:
| Component |
Nr buc |
Descriere |
| RKB LA-212 |
4 |
Module line-array, 2x1.75"(Neo);MF:4x6.5" (Fe);LF: 2x12" (Fe or Neo), 1200W RMS, pasive, max SPL:135 dB, 60 kg |
| RKB LA-218 |
4 |
Subwoofere 2 x 18", 1800 W RMS, Max SPL: 134 dB |

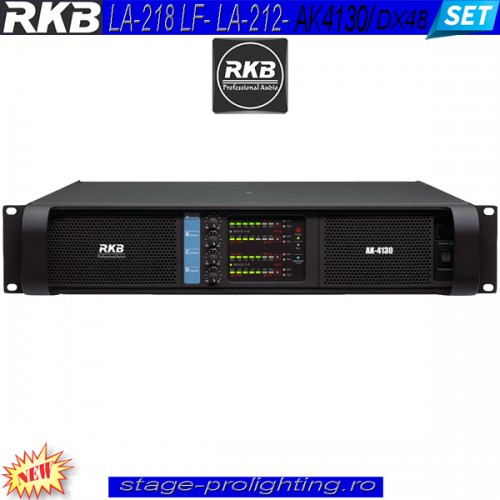

| RKB-4130 |
2 |
Amplificator 10000 W, 4 canale |
| RKB DX48 |
1 |
Procesor de sistem : 4 in, 8 out |
| Cabluri |
SET |
Cabluri speakon NL4, 80m, 4 x 2,5mm, professional |
Sistemul poate fi adus numai cu comanda ferma, plata integrala anticipat, cu un contract prealabil de agreement semnat intre Beneficiar si magazin. In baza acestuia plata bancara este garantata cu Bilet la Ordin. Importul este extra comunitar si se face in aproximativ 8-10 zile by air. Garantia oferita produselor este de 2 ani!! Deoarece acest sistem este oferit promotional, este posibil sa apara in urmatoarele saptamani scumpiri. Va rugam sunati la magazin pentru a consulta cotatia de pret la momentul efectuarii comenzii.
Detalii Tehnice:
|

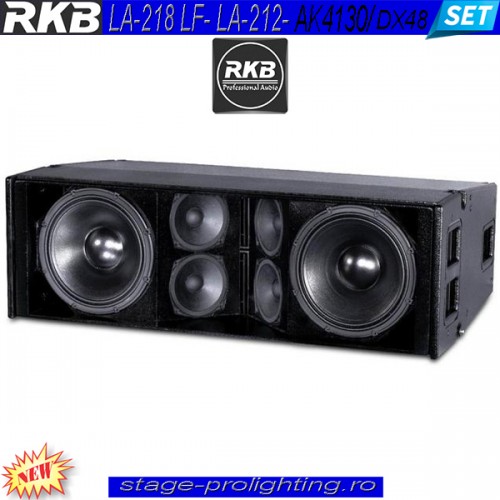

Model number: LA-212
Characteristic:
- Passive three-way line array system, with frequency response 50Hz-20KHz.
- Extremely powerful dual 12” neodymium woofers and dual 44mm voice coil neodymium tweeters, together with 4 pieces of 6.5” MF drivers, provides unbelievable excellent sound and a wide dynamic range.
- High SPL, designed for long-distance touring system.
- Wide sound coverage and ultra-high resolution.
- Super-low distortion in super-high sound pressure level.
- High-strength rigging hardware, easy and safe to install.
Specifications:
|
Model
|
LA-212
|
|
Components
|
2x1.75"(Neo);MF:4x6.5" (Fe);LF: 2x12" (Fe or Neo);
|
|
Frequency Response
|
50Hz - 20kHz(±3dB)
|
|
Sensitivity(1W/1M)
|
HF:115dB; MF: 110dB;LF: 105dB;
|
|
Maximum Peak SPL
|
HF:135dB; MF: 130dB;LF: 129dB;
|
|
Rated Power(RMS)
|
HF:100W; MF:300W LF:800W
|
|
Peak Power(RMS)
|
HF:200W MF:600W LF:1600W
|
|
Impedance(Ohm)
|
HF:12 Ohm; MF:8 Ohm; LF:8 Ohm
|
|
Crossover
|
/
|
|
Dispersion Angle (-6dB)
|
90H x 0-10V
|
|
Connectors
|
2xNL8 Speakon
|
|
Enclosure Material
|
High-strength Plywood
|
|
Cabinet Finish
|
Germany Water Paint
|
|
Dimensions (W*D*H)
|
356*1120*688 mm
|
|
Net. W.
|
60 kg
|
Competitive Advantage:
- Every cabinets were manufactured by our own factory with CNC cutting machine, which can make sure the accuracy of the sizes.
- The speaker box is using Germany water paint, which is environment-protected.
- Glass Fiber Reinforced Plastic (FRP) can be applied to the cabinet on requirement, so as to make the box waterproof.
Applications:
- Large theaters/ Auditoriums
- Outdoor stadiums
- Large music halls
- Large conference center
- Large touring sound system
- Detailed Product Description

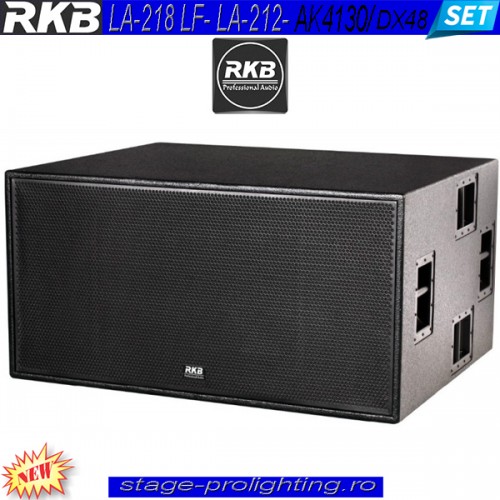

RKB-LA-218
|
Components:
|
LF:2*18（Ferrite)
|
Color:
|
Black / Brown
|
|
Frequency Response:
|
30Hz-250Hz(±3dB)
|
Maximum SPL:
|
134dB
|
|
Rated Power:
|
1800W
|
Peak Power:
|
3600W
|
|
Impedance:
|
4ohm
|
Cabinet Finish:
|
Germany Water Paint
|
|
Dimensions (mm):
|
1160*920*580mm
|
Net. W.:
|
98 Kg
|
DESCRIPTION & APPLICATION:
The subwoofer LA-218 bass bin is a high performance sub-bass system designed for large scale venues including touring and fixed installations. It features with twin 900 watt 18" driver units with magnet structure and suspension engineered for maximum linear excursion. Its twin woofers are housed in bandpass box to deliver ultra powerful bass energy. The LA-218 bass bin extends low-bass response and high efficiency makes it an ideal partner for LA-series line array systems wherever high power, extended bass is required. It can be ground stacked with RKB LA-25 / LA-212 / LA-215 outdoor line array systems, also it possesses high output apability with low frequency extension. In addition, LA-218 bass bin is ideal for fixed sound installations such as discos, theaters, nightclubs, halls, conference centers and commercial events.
Features:
LA-218 consists of two pieces of 18 inch high output woofer speaker units, which have a 4 inch voice coil in double -Layer structure.
All the speaker components are made with high temperature resistance and high-strength materials, which makes it more powerful and more efficient in cooling the speakers.
It can ensure stable operation and high power output for a long time working.
The fine optimized speaker cabinet allows the excellent transient response and much longer distance.
The improved reversed phase system largely reduces the noise airflow, and strengthens the cabinet structure, and reduces the insignificant vibration, making the sound more powerful and strong.
Designed to working with line array speakers in large stadiums and large touring sound system.
SPECIFICATION:
|
Components
|
2x18" Subwoofer
|
|
Frequency Response
|
30Hz-250Hz(±3dB)
|
|
Sensitivity(1W/1M)
|
102dB
|
|
Maximum Peak SPL
|
134dB
|
|
Rated Power(RMS)
|
1800W
|
|
Peak Power(PEAK)
|
3600W
|
|
Impedance(Ohm)
|
4 Ohm
|
|
Crossover
|
/
|
|
Dispersion Angle(-6dB)
|
/
|
|
Connectors
|
2xNL4 Speakon
|
|
Riggings
|
/
|
|
Enclosure Material
|
High-strength Plywood
|
|
Cabinet Finish
|
Germany Water Paint
|
|
Protective Grille
|
Black Perforated Steel with Acoustic Cloth
inside
|
|
Dimensions (mm)
|
1160*920*580mm
|
|
Net. W.
|
98 kg
|
|
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
