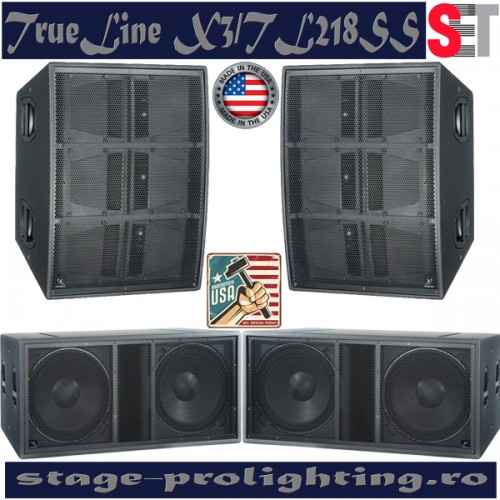

TrueLine X3 / TL218SS active SET
Cod produs: TrueLine X3 / TL218SS active SET
Disponibilitate: pre-comanda
VAT Incl.
Descriere
TrueLine X3 / TL218SS active SET se compune din:
| Component | Nr | Descriere sumara |
| TrueLine X3 | 2 | modul line-array, activ, 133dB, 2250 W RMS |
| TrueLine TL218SS | 2 | subwoofer activ 2 x 18" |
import SUA, 3 ani garantie!!! Produsul se aduce numai cu pre-comanda, pentru ultimele detalii privind pretul, modalitatea si termenul de livrare, va rugam sunati la magazin.
Detalii si specificatii Tehnice:
TrueLine X3
- TrueAim Rigging
- TrueAim Rigging 1 Degree Increments
- Ultra Compact
- Ultra Compact Line Array
- Under Hung Voice Coil
|
SYSTEM PERFORMANCE |
|
|
Frequency Response (-3dB)1 |
55 Hz – 18 kHz |
|
Frequency Range (-10dB) |
47 Hz – 20 kHz |
|
Recommended High-Pass |
60 Hz – with minimum 24 dB / octave (4th order) slope |
|
Nominal Dispersion @ -6dB |
Horizontal: 160 Degrees |
|
Recommended Crossover Frequency |
1.6 kHz (acoustic, active, external DSP) |
|
Long Term Power Handling2 |
Low Frequency High Frequency |
|
Nominal Impedance |
BiAmp LF: 3.2 ohms Powered LF: 3.2 ohms |
|
Pressure Sensitivity |
LF: 106dB |
|
Max P SPL @ 1 Meter4 |
130 dB SPL (133 dB SPL peak) |
|
TRANSDUCERS |
|
|
LF: 8” (203.2mm) x 6 |
2” (50.8) voice coil |
|
HF: 1” Exit (25.4mm) x 3 |
1.75” (44.45) voice coil |
|
PHYSICAL |
|
|
Enclosure |
Baltic birch plywood, engineered plastics, and aluminum frame |
|
Finish |
Two-part spray catalyzed Polyurea coating on plywood |
|
Grill |
14-gauge (1.0 mm) perforated steel, powder-coated finish, black |
|
Environmental |
Indoor use only (Outdoor coatings available for weatherization) |
|
Connectors |
Two (2) parallel-wired NL4 Neutrik® Speakon® connectors |
|
Power Amp Connectors |
Neutrik® PowerCon (AC) XLR M/F (In/Out) |
|
Suspension/Mounting |
TrueAim® rigging; optional array frame accessories |
|
Dimensions |
31.1875” H x 24.5” W x 18” D (792.0 mm x 622.3 mm x 457.2 mm) |
|
Net Weight |
161 lb. (73.02 kg) |
|
Shipping Weight |
170 lb. (77.10 kg) - approximate with carton |
|
Product Versions |
X3T-BA, X3T-PAS, X3T-P, X3i-BA, X3i-PAS, X3i-P |
|
Digital Power Amp |
PXD-2580 |
ENDNOTES
1Frequency response and range measured on-axis with recommended active EQ in an anechoic environment.
2Power handling tested using pink noise filtered to meet IEC 268-5, 6 dB crest factor, 100 hours, with recommended EQ.
3Sensitivity measured in free field (no boundary-loading gain) with recommended active EQ, referenced to 1W/1m.
4Maximum SPL calculated from sensitivity and power handling specifications, exclusive of power compression.
Description
The X3 is a two-way, high efficiency, line array loudspeaker. It is designed as an all-in-one ultra compact high performance system for the reproduction of speech and music program material.
The X3 incorporates three medium format 1” exit compression drivers coupled to a stabilized proprietary FlatWave Former that delivers clear but penetrating high frequencies over a predictable and controlled coverage area. The X3 has a Horizontal pattern of 160 degrees and a Vertical of 40 degrees. Six 8” cone transducers coupled to the (A.I.M.) Acoustic Integrating Module minimizes comb filtering throughout the entire operating range. A sturdy multi-ply plywood enclosure, with a multi layered catalyzed Polyurea finish, will withstand the most demanding portable applications. A perforated, powder coated steel grill with a high transmission ratio offers excellent protective properties. The custom designed flyware enables the user to easily array the system to the precise desired coverage area.
The X3 is available in black or white exterior. The X3 excels in a myriad of diverse applications requiring a compact line array enclosure. Superior workmanship and transparent sonic quality make the X3 an exceptional tool for any speaker system.
TrueLine TL218SS
High SPL Sub Bass Loudspeaker System
- Durable Catalyzed Multi-layered Finish
- Extended Low Frequency
- High Level Output
- Long Excursion Design
- Low Power Compression
- Roadworthy Construction
- Tour grade enclosure and mechanics
|
System Performance |
|
|
Frequency Response (-3dB)1 |
25 Hz – 150 Hz |
|
Frequency Range (-10dB) |
18 Hz – 150 Hz |
|
Recommended High-Pass |
20 Hz – with minimum 24 dB / octave (4th order) Butterworth slope |
|
Nominal Dispersion @ -6dB |
Omni |
|
Recommended Crossover Frequency |
90 Hz (acoustic, active, external DSP) |
|
Long Term Power Handling2 |
Low Frequency |
|
Nominal Impedance |
LF: 4 ohms |
|
Pressure Sensitivity |
LF: 102 dB |
|
Maximum SPL @ 1 Meter4 |
137 dB SPL (143 dB SPL peak) |
|
Transducers |
|
|
LF: 18” (457.2mm) x 2 |
4.5” (114.3) voice coil |
|
Physical |
|
|
Enclosure |
Baltic birch plywood, engineered plastics, and aluminum frame |
|
Finish |
Two-part spray catalyzed Polyurea coating on plywood |
|
Grill |
14-gauge (1.0 mm) perforated steel, powder-coated finish, black |
|
Environmental |
Indoor use only (Outdoor coatings available for weatherization) |
|
Connectors |
Two (2) parallel-wired NL4 Neutrik® Speakon® connectors |
|
Power Amp Connectors |
Neutrik® PowerCon (AC) XLR M/F (In/Out) |
|
Suspension/Mounting |
TrueAim® Tour side-plate rigging; optional array frame accessories |
|
Dimensions |
22.5” H x 48” W x 30.0” D (571.5 mm x 1,219.2 mm x 762 mm) |
|
Net Weight |
285 lb. (129.27 kg) |
|
Shipping Weight |
295 lb. (133.80 kg) - approximate with carton |
|
Product Versions |
TL218i, TL218i-P, TL218T, TL218T-P |
|
Digital Power Amp |
PXD-2500 |
Footnotes
1Frequency response and range measured on-axis with recommended active EQ in an anechoic environment.
2Power handling tested using pink noise filtered to meet IEC 268-5, 6 dB crest factor, 100 hours, with recommended EQ.
3Sensitivity measured in free field (no boundary-loading gain) with recommended active EQ, referenced to 1W/1m.
4Maximum SPL calculated from sensitivity and power handling specifications, exclusive of power compression.
Description
The TrueLine TL.218SS is designed to satisfy the need for an extreme high SPL sub bass loudspeaker system. Components have been selected solely for their performance.
The TrueLine TL.218SS utilizes two direct radiating 18” 2000W cone drivers in a tuned enclosure, which provides maximum output with minimal distortion and smooth extended low frequency response. The tour tested 21 ply Baltic Birch highly braced enclosure and 24mm thick baffle board construction provide unsurpassed rigidity and strength. The enclosure is built to truck pack dimensions for efficient transportation of multiple units, and should be arrayed to increase performance in large or outdoor venues.
The TrueLine TL.218SS is designed to be used for low frequency sections in multi-way speaker systems, or as a sub bass section in any sound system requiring extend low frequency response and the highest quality audio reproduction. The TrueLine TL.218SS comes with a multi-layered catalyzed Polyurea finish and is offered with a variety of color options.
The TrueLine TL.218SS delivers the transparent sonic quality and easy portability necessary for the demands of professional audio today.
